Wheel Hub Inspection NDT X Ray Equipment 480W / 1800W 225KV Lab Foundries
Wheel Hub Inspection NDT X Ray Online System 225KV lab Foundries
UNI160-Y2-D9 is our most advanced inline wheel X-ray inspection system for alloy wheels, combining high-speed wheel inspection and outstanding image quality. The UNI160-Y20D9 is dedicated to automatic inspection with software that delivers objective and reliable decisions and a minimum of pseudo rejects.
The system has been designed for maximum availability in 24/7 inline operation and minimum cost of ownership due to low maintenance requirements.
1. Wheel clamping synchronous drive to make sure the orecise control.
2. Intelligent algorithm with X-Ray source and the flat panel walking swing angle.
3. New wheel hub test has teaching function, manual setting, automatic save functions
4. Automatic wheel hub and software self matching
5. Mechanical modular design and compatible with 160KV/225KV X-ray source with 9 inch tablet intensifier and installation
6. Automatic calculate the bubble of the wheel hub,set aside the output interface of the automatic sorting
7. Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (Optional)
Technical Data
| Attribute | Respective Value |
| Sample Dimensions | 13’’-22’’ Aluminum alloy wheel hub |
| Equipment weight | 18.65T |
| System Dimension | 3250mm*1710mm*2450mm(L*W*H) |
| X-ray Tube | 160kV/225kV |
| Power | 480W/1800W |
| Pixel Pitch | 139 [m] |
| Focal size | 0.5mm/1.0mm |
| Cycle Time | 45s/pcs(18’’)wheel |

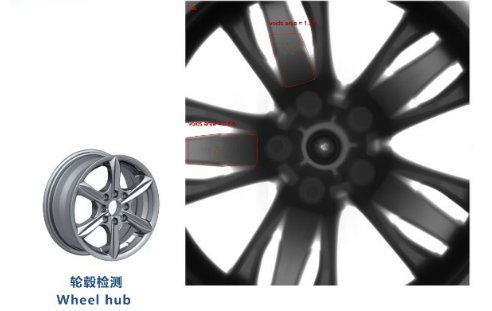

Inspection Images:
