Automotive Industry Brake Cable Welding X Ray Equipment UNC160 High Resolution
Price:
can negotiate
MOQ:
1Set
Delivery Time:
30 days
Brand:
UNICOMP
Product Description
UNC160 High-Resolution X-Ray Equipment For Brake Cable Welding Quality Inspection In Automotive Industry

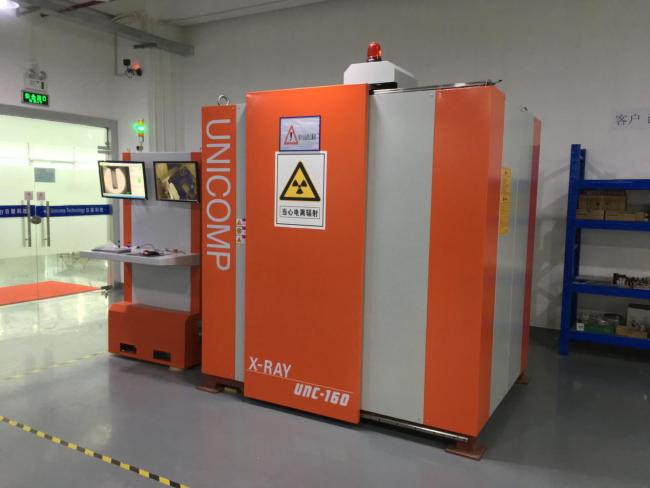

Equipment: UNC160

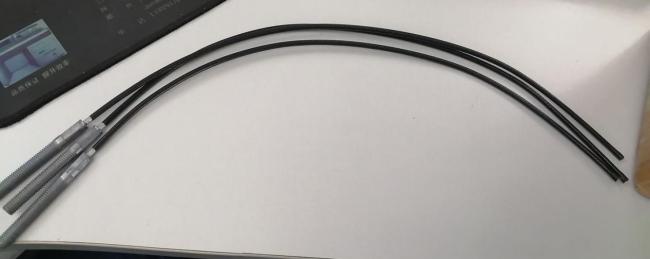

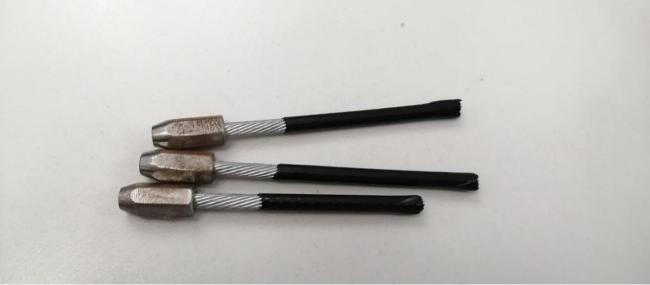

Sample: Brake Cable
Application: Auto parts, used in the automotive industry

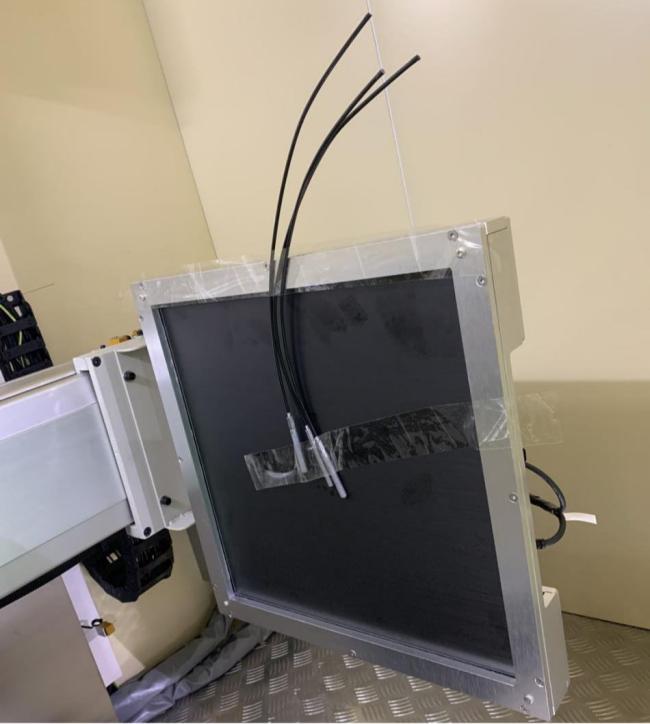

Testing:
Specification:
| System Parameters | Dimensions | 2100mm*1549mm*2468mm(L*W*H) |
| Equipment weight | 3.5T | |
| Power | 6KW | |
| Maximum penetration(AL/FE) | 100mm/20mm | |
| Detection range | Φ500*800mm | |
| Load weight | 50kg | |
| Work environment | 5-40° ≤80%HR | |
| Install power | Three-phase five wire system AC380V | |
| X-ray leakage dose rate | ≤1uSv/h | |
| X-ray Generator | Tube voltage | 160kV |
| Power | 480W | |
| Focal size | 0.5mm | |
| Detector | Image area | 145mm x 145mm |
| Resolution | 3.0LP/mm | |
| Detector ( Selection FPD ) | Image area | 17’’x17’’ |
| Pixel matrix | 3072mm*3072mm | |
| Pixel size | 139μm | |
| Frame rate | 9fps(1x1)30fps(2x2) |
Xray images:
