China UNX6030N Food X Ray Inspection System 60M/Min Detect Foreign Matter Contaminants for sale

UNX6030N Food X Ray Inspection System 60M/Min Detect Foreign Matter Contaminants

Price Negotiable

Price: can negotiate

MOQ: 1 set

Delivery Time: 15 days

Brand: UNICOMP

Product Description

Food X ray Inspection System UNX6030N used to detect foreign matter contaminants in small bags for lightweights products

Applications

UNX6030-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.

Features

Easy to Operate: one button start & stop, optional default product

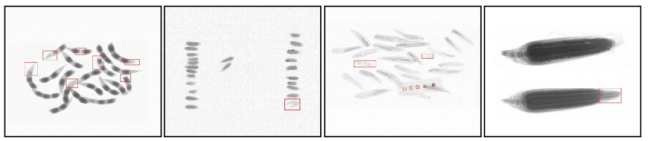

Provide High precision automatic foreign detection, It can effectively identify metal, ceramic,glass, bone, shell and other malignant foreign matter in the product
Sensitivity adjustment, alarm management, powerful data statistics report
The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI
Tool free for conveyor belt and protective curtains

Technical Specifications

Equipment Features	Dimension	2005(W)X1280(D)X2195(H)mm
	Machine weight	700kg
	X-ray tube	100kv 350W/120kv480W
	Power Supply	AC 220V, 50Hz
	Max. Load-bearing capacity	25kg
	X-ray detector	0.1mm/0.2mm/0.4mm

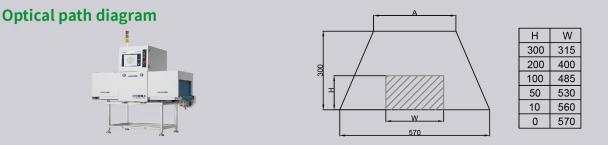

	Channel size	600mm(W)*300mm(H)
	Conveyor Speed	10-60M/min
	Reload Speed	10-40M/min
	Usage environment	Relative temperature 5-40℃,Relative humidity＜80%
Capability	Detection Sensitivity	SUS BALL≥ø0.3mm
		SUS wire≥ø0.2*2mm
		Glass ball≥ø1.0mm
		Ceramic ball≥ø1.0mm
System Computer	Port	1LAN,2USB
System Computer	Industrial PC	17"LCD touch screen; Windows 10
Other	IP Grade	Conveyor: IP66, Others: IP65
Other	X-Ray Safety	<1μSv/h
