10 KW NDT X Ray Equipment For Casting Defects Heat Sinks / Hot Tears / Cold Flow

Price Negotiable

Price: can negotiate

MOQ: 1Set

Delivery Time: 30 days

Brand: UNICOMP

Product Description

Casting defects heat sinks, hot tears, cold-flow, drag-marks, missing material and cracks NDT X-Ray Inspection

Application Fields of X Ray Machine UNZ-450

● Engineering components

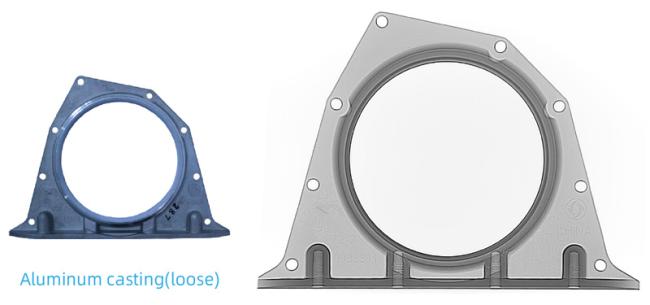

● Small aluminum castings, iron castings
● Auto parts, metal products

Technical Parameters and Specifications of X Ray Machine UNZ-450

System Parameters

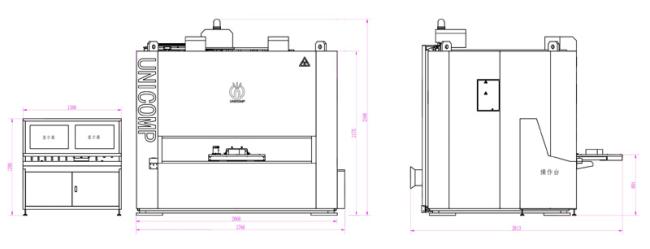

Dimensions	2766mm2813mm2598mm(LWH)
Equipment weight	17.5T
Power	10 kW
Maximum penetration (FE)	80 mm
Detection range	Φ550*200mm
Load weight	30kg
Work environment	5-40° ≤80%HR
Power supply	Three-phase five wire system AC380V
X-ray leakage dose rate	≤2.5μSv/h
X-ray Generator
Tube voltage	450KV (160KV, 225KV, 320KV for option)
Power	700W / 1500W
Focal size	0.5mm
Detector (FPD)
Image area	250mm×300mm
Pixel matrix	1792×2176
Pixel pitch	139μm
Frame rate	9fps(1×1) 30 fps(2×2)
Software Function
Image processing	brightness and contrast adjustment; stacking frames, window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure;ove, zoom in, zoom out, display image scaling, display the current mouse coordinates and gray values
Image measurement	distance, radius, polygon, angle measurement; arrows and text labels; save the image after processing
Motion control	the speed adjustment of each moving axis; CNC programming; manual operation;
Additional function
● CNC programmable control, to save the detection time of the bulk of the workpiece
● C type arm five detection mechanism, no dead angle detection
● Servo stepper motor drive, stable operation
● Voltage regulator, isolation, filtering, grounding and other protective functions are complete
● Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis(optional)
