Industrial 400W Yaskawa SERVOPACK Input 1Phase 50/60HZ SJDE-04APA New in box

DESCRIPTION

• Industrial Servo Drive
• ServoPack
• Servo Controller

SEPCIFICATIONS

Input Main Voltage: 200-230V
Input CONT Voltage: 200-230V
Input Mian PH: 1
Input Mian Frequency:50/60HZ
Input Mian Current : 4.8A
Output Power :400W
Output Voltage: 0-230V
Output Current: 2.0A
Output Frequency:0-300Hz
Output PH :3
Temperture: 0-55℃
Place of Origin:Japan
Efficiency:IE 1

SIMILAR PRODUCTS

SJDE-01APA

SJDE-02APA

SJDE-04APA

SJDE-04APA+SJME-04AMB41

SJDE-08APA

SJME-01AMA41

SJME-04AMA41

SJME-04AWA41

SJME-08AWA41

■Voltage withstand withstand withstand withstand test shall be carried carried carried carried out under following following following following conditions. conditions. conditions. conditions. Voltage: AC1500Vrms, in 1 minute Rupturing current: 100mA Frequency: 50/60Hz Charge point: between terminals of L1, L2, L3(R, S, T) and FG terminal (connection s between terminals shall be fastened) ■Leakage protector protector protector protector of instant instant instant instant response response response response type shall be applied. applied. applied. applied. Leakage protector of instant response type or that appointed for PWM inverter shall be applied instead of leakage protector, don't used delaying type.

■It can not operate operate operate operate continuously continuously continuously continuously under over loading. loading. loading. loading.

■Servo motor can not be operated operated operated operated by on/off of power supply. supply. supply. supply. Frequently turn on/off power will accelerate ageing of inside components, such that operation of servo motor shall be controlled by command signals.

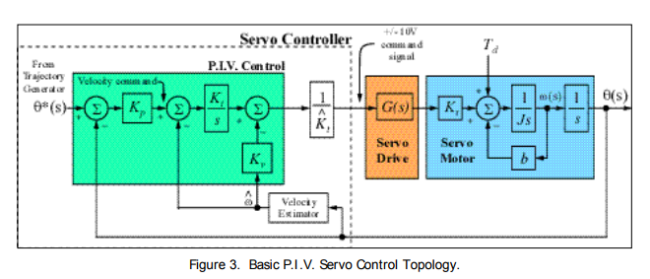

Servo control in general can be broken into two fundamental classes of problems. The first class deals with command tracking. It addresses the question of how well does the actual motion follow what is being commanded. The typical commands in rotary motion control are position, velocity, acceleration and torque. For linear motion, force is used instead of torque. The part of servo control that directly deals with this is often referred to as “Feedforward” control. It can be thought of as what internal commands are needed such that the user’s motion commands are followed without any error, assuming of course a sufficiently accurate model of both the motor and load is known.
