2KW 200V Mitsubishi AC Servo Amplifier MR-J4-200A J4 Series 3-phase
2KW 200V Mitsubishi AC Servo Amplifier MR-J4-200A J4 Series 3-phase
Product Details
- Melservo MR-J4 Servo Amplifier 2KW 200V (MRJ4200A)
- Manufacturer: Mitsubishi
- Series: MELSERVO MR-J4
Warranty
- The MR-J4-200A comes with a 1 year warranty.
Configured Specifications
| Type | Servo Amplifier | Rated output capacity(W) | 2000 |
|---|---|---|---|
| Specification voltage | 200V Class | Power Supply | Single-phase/ Three-phase |
| Special Specification | Standard Product | Compatible Rotary Type Servo Motor | HG-SR121/201/152/202・HG-JR73/103/153/203・HG-RR103/153・HG-UR152 |
| Applicable Interface | General Purpose |
| Power supply | 3-phase 200 V AC ~ 240 V AC, 50 Hz / 60 Hz |
| Output current | 3-phase 170 V AC |
| Output power | 2 kW |
| Output current | 10.5 A |
| Communication | RS-422, connect PC via USB port |
| Manufacturer | Mitsubishi - Japan |
Servo Mitsubishi MR-J4-200A
Servo driver MR-J4-200A Mitsubishi belongs to the MR-J4 Series Servo series, with a range of 0.1-22kW. This Servo Series is economically efficient thanks to the bus speed via SSCNET III / H network, which is 3 times faster than previous solutions. With optimal design requires fewer wires and more connection, minimizing power consumption thanks to renewable energy sources when using 3-axis model. Servo MR-J4 is supported by iQ Works of Mitsubishi Electric, providing full range of PLC features, motion, programming and HMI development in one package.
Main feature
2500Hz: frequency speed up to 2500Hz will significantly reduce installation time (ts)
150Mbps SSCNETIII / h: can be connected via high-speed fiber optic cable, SSCNETIII / h motion network 150Mbps
Available models: 200V, 50W-7kW
System resolution up to 22 bits: AC motor servo is equipped with 22bit / ~ 4 million pulses per rev
Advanced, continuous adjustment algorithm: One-Touch automatic correction function is enhanced with real-time load control
Safety certification: TUV safety protection function has been certified
Energy saving ability

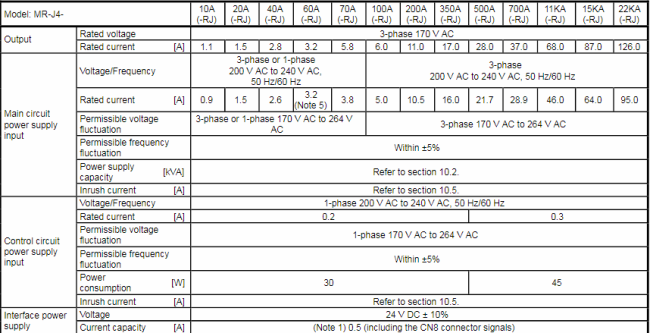

Servo amplifier standard specifications 200 V class
