7KW Mitsubishi Electric Servo Amplifier MR-J2S-700CP Industrial AC Servodrive 200-230V

Specifications for AC SERVO MR-J2S-700CP

MITSUBISHI AC SERVO
Model:MR-J2S-700CP
Power:7kW
Input:28.9A 3PH+1PH200-230V 50Hz
3PH+1PH200-230V 60Hz
Output:170V 0-360Hz 37.0A

Introduction

The MR-J2S-CP AC servo amplifier with positioning function is made easier to use and higher in function by using it with the MR Configurator (servo configuration software).

The MR-J2S-CP AC servo amplifier with built-in positioning functions is the MR-J2S-A general-purpose AC servo amplifier which incorporate single-axis positioning functions. These functions perform positioning operation by merely setting the position data (target positions), servo motor speeds, acceleration and deceleration time constants, etc. to point tables as if setting them in parameters.

The servo amplifier is the most appropriate to configure a program-free, simple positioning system or to simplify a system, for example. There are 3 points of point tables as standard, and they can be increased up to 31 points by using the MR Configurator (servo configuration software).

Features:

Amplifier MR-J2S series:

Compliant and Safe

• Satisfies global industrial standards
• Enhanced ability to withstand environmental hazards
• Separate wiring for the control power supply

Compact and flexible

• More compact servo motors
• A wide variety of motors including models with brakes Fully Equipped
• Absolute detection as standard
• Personal computer interface is standard
• Dynamic brake function
• Integrated regenerative resistor
• Control signal assignment feature(MR-J2S-A and MR-J2S-CL series)

Special Features

• Model adaptive control
• Servo-lock anti-microvibration function
• Automatic servo motor recognition
• Encoder serial communications
• Real-Time Auto-Tuning (RTAT)

Motor HC-SFS series:

• Absolute high-resolution encoder as standard equipment
• Design achievement
• Medium inertia

• MDS and MR Series AC Servo Drives
• MDS and FR Series AC Spindle Drives
• FR Series General Purpose Inverters and Braking Modules
• HA / HC / HF / HP / HS Series AC Servo Motors
• SJ Series AC Spindle Motors
• CNC Boards
• Power Supplies

Mitsubishi MR-J2S Series Servo Drive

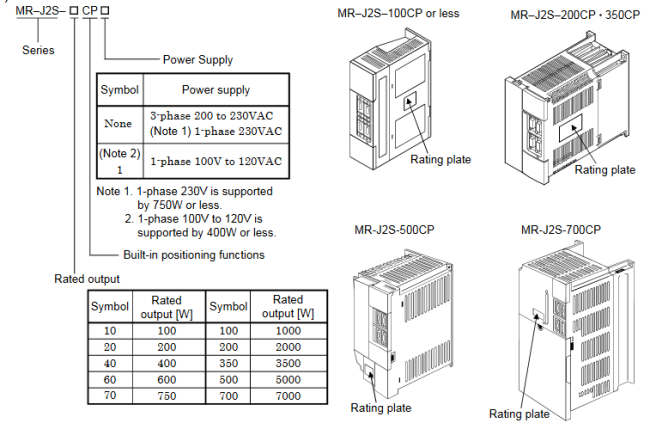

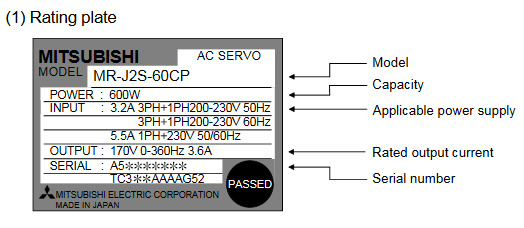

Nameplate





Model







• All the Mitsubishi Parts are new and original with package.
• Warranty time: 180 or 360 days.
