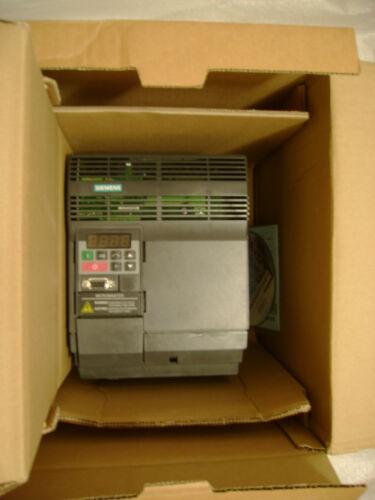

Siemens Micromaster MM550/3F 550Hz Out 5.5 kW 400 Vac 6SE6420-2AD25-5CA1 NEW 5.5 кВт

Siemens Micromaster MM550/3F 550Hz Out 5.5 kW 400 Vac 6se6420-2ad25-5ca1 NEW 5.5 кВт

Specification

Manufacturer: SIEMENS
Type: FREQUENCY INVERTER
Model: 6SE6 420-2AD25-5CA1
Family: MICROMASTER 420

Input:
Voltage: 3 phase 380 – 480 VAC
Rated Current: 17.3 A
Frequency: 47 – 63 Hz

Output:
Voltage: 3 phase 0 – 380 – 480 VAC
Rated Current: 13.2 A
Frequency: 0 – 650 Hz
Power: 5.5 Kw

Weight: 4.9 Kg
Ambient Temperature: -10 … 50 °C
Protection Class: IP20

Additional Information
MICROMASTER 420 WITH BUILT IN CLASS A FILTER 3AC 380-480V +10/-10% 47-63HZ CONSTANT TORQUE POWER 5.5 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 5.5 KW 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP

Features and Benefits
Micro processor controlled, using IGBT technology Simple to commission & set up
Works straight from the box, using factory set defaults. To change these defaults an optional operator panel is required
Selectable switching frequency to enable quiet motor operation
Modular design
Programmable & scalable analogue input 0 to 10V
Fully programmable relay output
Integral class A EMC filter for single phase type
External options for PC communications, operator panels or Profibus communications module
Optional operational panels for greater control, parameter setting/changing
Flux current control (FCC) for good dynamic response & motor control
Fast current limitation (FCL) for operation with trip-free mechanism
Built in d.c. injection brake
Acceleration/deceleration times with programmable smoothing
Closed-loop control using PI
Comprehensive range of protection functions e.g. over temperature, short circuit
The instructions and software utilities are supplied on a CD compatible with Windows NT and 2000 only

Applications
Can be used for advanced motor control applications via its comprehensive parameter lists

Note: An operator panel will be required to operate this unit or to modify the factory set parameters.
