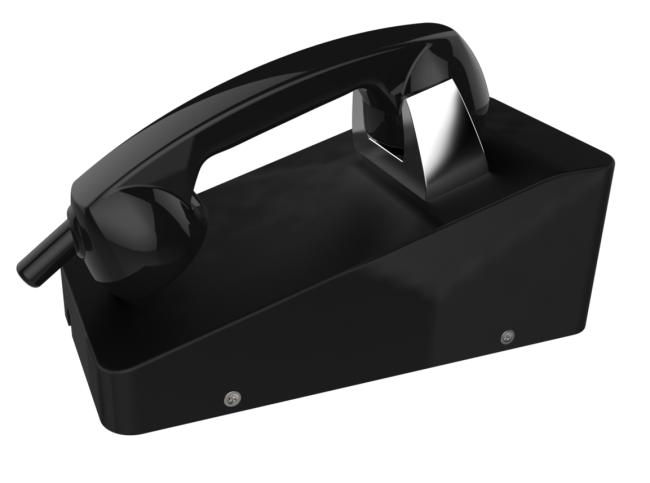

Hotline Waterproof Emergency Vandal Resistant Telephone
Anti-vandal Hotline Emergency Telephone for Tunnel Control Room
Housed in cold rolled box and manufactured to a high standard, JR211-FK offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.
MAIN FEATURES
- Standard Analogue, GSM, 3G, or SIP/ VoIP phone
- Robust housing, constructed of cold rolled steel
- Vandal resistant handset and armored cord
- Weather proof protection from IP54 to IP 65
- Magnetic reed hook switch
- Auto-dial, easy to operate
- Desk mounting, simple installation
- Programmable for hot line
- Phone line powered (Analog)
- External power supply or PoE (SIP)
- RJ45 Port for SIP connection
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, RoHS, ISO9001 compliant
TECHNICAL PARAMETERS
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
PACKAGE
Unit size: 300 *150 *160 (mm)
Packaging materials: Pearl cotton, Carton
Net weight: 3 KG
Gross weight: 4 KG
