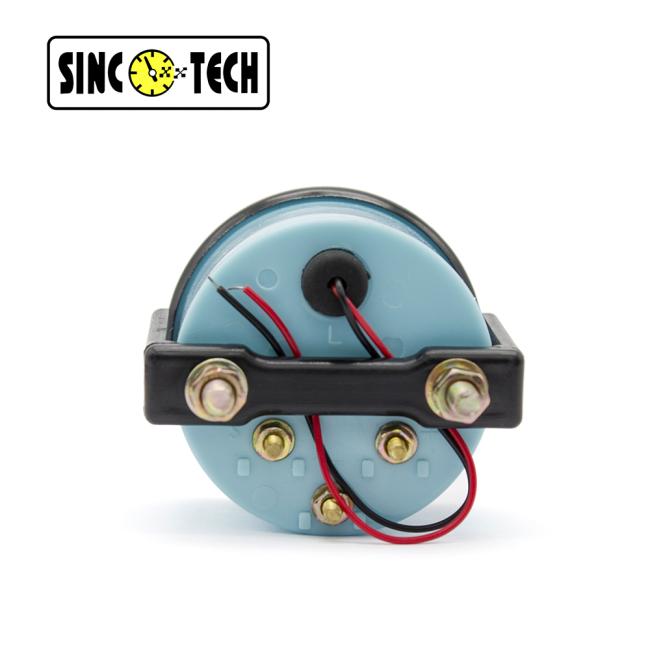

Sinco Tech 2015BB Fuel Gauge 52mm Race Car Gauges Auto Mobile 12V Vehicles Meter Fuel Level Gauges

the actual price,Please enquire

Description :

• Brand: SINCO TECH
• Gauge Model: Fuel Gauge

•  201 Series:Does not include wires.( The sensor needs to be grounded!! Important!!)



  Apply: All 12v cars

•

  Fuel level gauge(E-1/2-F)

  1x Fuel Level Gauge

  1x Fuel Float

  1x Instruction

The shell color:Black

The light color: White

Power: 12V DC, Max. 0.3A

Features:

Black shell and White light

High sensitivity and easy operation.

Please Note:

 Due to the light and screen setting difference, the items color may be slightly different from the pictures.

• The fuel gauge is used to indicate the level of fuel in the fuel tank, that is, the amount of remaining fuel. When the fuel gauge indicates "0", the minimum fuel level warning light is on, and there are about 6 to 8L of fuel in the fuel tank at this time, so you should go to the gas station to refuel as soon as possible. Common causes of fuel gauge failures are as follows:

  There is a problem with the oil gauge itself:

  The failure of the fuel gauge itself will lead to the situation that the fuel gauge does not move or is inaccurate. The way to judge is that the fuel gauge pointer does not deviate for about half a minute after the ignition switch is turned on, or the pointer swings randomly and the fuel gauge pointer is out of alignment. , indicating that the fuel gauge is faulty, and the fuel gauge can be replaced.

  Sensor failure:

  When the sensor fails, it will also cause the fuel gauge to not move. The judgment method is to clamp the multimeter pen on the two wiring piles of the fuel sensor variable resistor to detect the resistance value of the variable resistor. If the result shows that it does not meet the standard, the sensor is malfunctioning.

  Instrument coil short circuit:

  A short circuit in the gauge coil can also cause problems with the oil gauge.

•
