Simplex Half / Full Duplex Fiber Optic Cable Production Line For 2 Core Indoor Cable
simplex half duplex and full duplex fiber optic cable production line for 2core indoor cable
Description
The simplex half duplex and full duplex fiber optic cable production line is mainly used to produce 2 core indoor optical cable, Include: Simplex cable, Duplex cable, FTTH cable and so on.
Line configuration
- 2 spools optical fiber pay-off
- Preheating and dry device
- One extruder SJ30×25 one self-center head
(With feed, compound dryer device and master batch)
- 4M Hot water trough
- Hot water tank
- 12 M cooling trough
- Cooling water tank (with refrigerating device)
- Blow dryer device
- Diameter control system
- 400 capstan
- Dual reel take-up for tight buffer fiber
- Electrical control system
Main Specification
| Line speed | 150m/min |
| Operation speed | 120m/min simplex cable |
| 80m/min (2.0*3.0mm cable) | |
| Cable size | Φ2.0mm,Φ3.0mm 2.0*3.0mm,2.0*5.0mm |
| Size of optical fiber pay-off reel | PN 235 PN400mm |
| Size of take-up reel | PN400～PN630 |
| Aramid cops | 10 |
| Aramid pay-off tension | 0.5N-3N±0.05N(adjustable) |

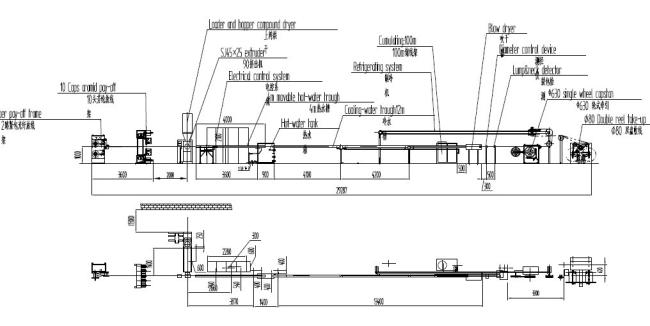

Drawing for reference
