Auto Fiber Optic Cable Equipment , Stainless Steel Loose Tube Production Line For OPGW
Stainless steel loose tube production line SSLT making machine SSLT equipment for OPGW
Description
Stainless steel loose tube production line is mainly used for producing stainless steel tube, which is for OPGW optic fiber cable or submarine cable.
Main Specification
| OD of stainless steel tube | φ2.0—φ5.0mm |
| Thickness of stainless steel tube | 0.15—0.3mm |
| Length capable produce continuously | 50km |
| Normal welding speed | 13m/min |
| Max.welding speed | 20m/min |
| No.s of optic fibers | 1～48 cores |
| Optic fiber pay-off tension | 0.2～1.5N |
| Over-length | 1.5‰～7‰ |
| Central height | 1000mm |
| Total power | 70KW |
Composition of the line
1 Stainless steel tape fold style pay-off
2 Stainless steel tape transverse welding device
3 48 fibers pay-off cabinet
4 Gel filling device
5 Stainless steel tape cutting, forming, welding unit
(Including 2 sets of waste tape winding devices)
6 Former stage clamp traction unit
7 First drawing device
8 Oil circulation cooling system
9 Latter stage clamp traction unit
10 Second drawing device
11 Overlength control device
12 φ800 single wheel capstan
13 Auxiliary caterpillar
14 Meter counter
15 Eddy current flaw detector
16 Tension control device
17 Take-up device
18 Electrical control system

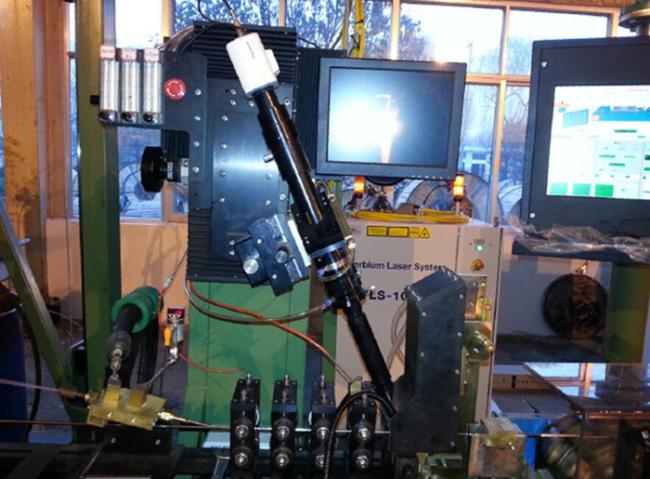

Machine Photo
