Lan Cable Wire And Cable Twisting Machine High Speed Quadruple Pitch
Price:
By Negotiation
MOQ:
1 Set
Delivery Time:
1 month after receipt of down payment
Brand:
Herrman
Product Description
Lan Cable Wire And Cable Twisting Machine High Speed Quadruple Pitch
1. Application
Lan cable CAT5E CAT6A CAT7 CAT8
Features :
Zero tension flyer pay off , with back twisting pay off at the same time , more stable performance for cable
Quadruple pitches finish in one time , 2 times efficiency than double twist machine
2. Technical Specification
| Model | 500 | 630 |
| rotate speed | max.1800rpm | max.1800rpm |
| cores diameter | 0.8-1.7mm | 0.8-1.7mm |
| finished OD | 1.6-3.4mm | 1.6-3.4mm |
| pitch range | 5-50mm | 5-50mm |
| back twist ratio | 0-100% | 0-100% |
| bobbin size | 500 pay off,500take up | 500 pay off,630take up |
| tension type | active slide rail type | active slide rail type |
| tension range | 0.6-3kg | 0.6-3kg |
| pitch tolerance | ±2% | ±2% |

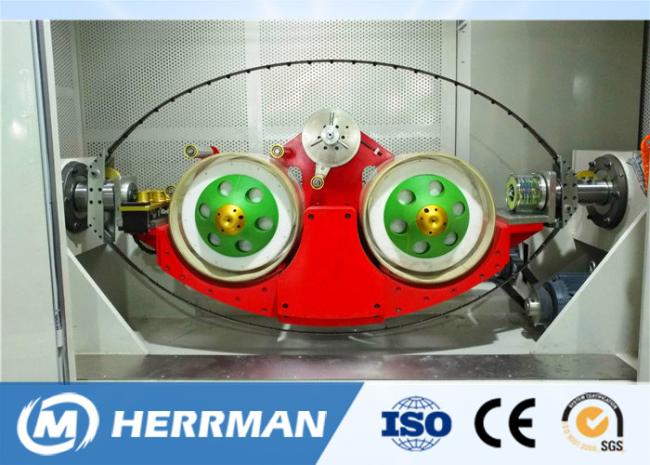

3. Picture for reference
