Single Twister Wire Cable Machine Cantilever Type S / Z Optional Twist Direction
Price:
By Negotiation
MOQ:
1 Set
Delivery Time:
3 months after receipt of down payment
Brand:
Herrman
Product Description
Single Twister Wire Cable Machine Cantilever Type Data Cable Lan Cable
1. Technical Parameter
| Model | 630 | 800 | 1000 | 1250 |
| Rotate speed | 850rpm | 600rpm | 500rpm | 400rpm |
| Bobbin dia. | 630mm | 800mm | 1000mm | 1250mm |
| Finished OD | 3-10mm | 3-15mm | 3-20mm | 10-25mm |
| Pitch range | 25-180mm | 30-200mm | 40-250mm | 40-300mm |
| Twist direction | S/Z optional | |||
| Take up type | Shaft lever type | |||
| Control system | PLC auto control system | |||
2. Auto Oiling Device
With setting oiling period and time on PLC , oiling device will auto process , makes machine more durable.
3. Less Bending
Three wire through pulleys , less bending and damage on twisted cable , ensure good electrical performance.
4. Bobbin Traversing take up
Fixed traversing wheel , movable bobbin for traversing and take up , pitch setting according to finished OD , compact ranking without pressure.
5. Application
Data cables
Lan cables
High frequency cables
Power Cables

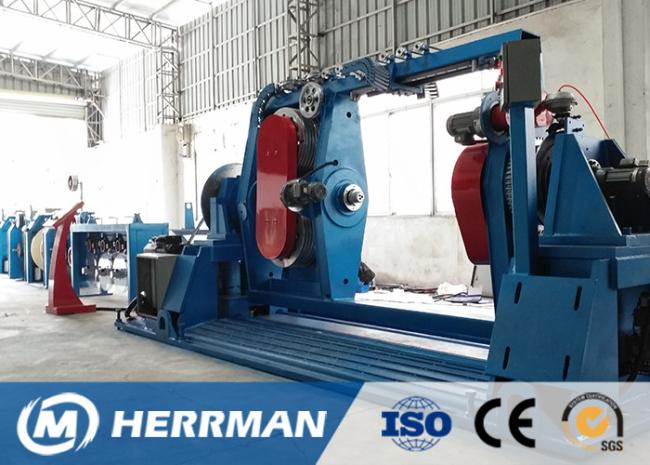

6. Picture for reference
