Automatic Interlock Cable Armouring Machine For Strip S / Z Type 1200rpm
Automatic Interlock Cable Armouring Machine With High Speed
Main Features:
The machine is controlled electrically & automatically. The working condition of each part is commanded and adjusted by SIEMENS touch screen and PLC. Technical parameter can be displayed, set and revised on touch screen. This line is with high automation, and easy to operate and maintain.
The forming system is newest system in China. It’s very easy to adjust, with high armoring speed. The appearance of armoring products is very nice.
The rewinding machine could rewind on line. It can be put in the production line, to avoid to accumulator tape material too much, to enhance the productivity.
Main Technical Data
| Type |
Max rotating speed (rpm) |
Diameter (mm) |
Tape Material |
Tape size (mm) Width x Thickness |
Motor (kw) |
Capstan motor (kw) |
Central Height (mm) |
Usage |
| 50 | 1200 | 6-45 |
Al Alloy tape Galvanized steel tape Stainless steel tape Copper tape |
(9.5,12.7)x(0.5,0.65) | 22 | 1.0 | 1000 | interlocking the round cable, Al Alloy cable, flat Submersible oil pump cable and fire-proof cable |
| 100 | 800 | 10-95 |
(9.5,12.7) (19,25.4) x(0.5,0.65) |
22 | 1.5 | 1000 | ||
| 130 | 800 | 10-125 | 22 | 1.5 | 1000 |

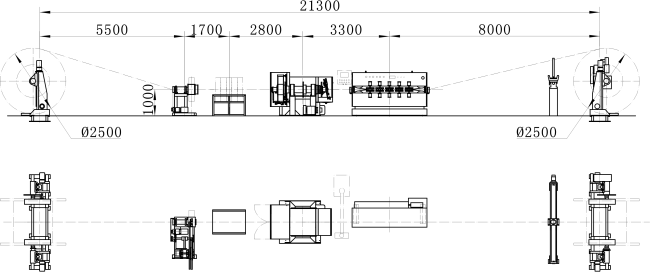

Machine Drawing
