Heavy Duty Torsion Free Pair Cable Twisting Machine For CAT5 CAT6 CAT7 Fatigue Resistant

Price Negotiable

Price: By Negotiation

MOQ: 1 SET

Delivery Time: 92 DAYS

Brand: Herrman

Product Description

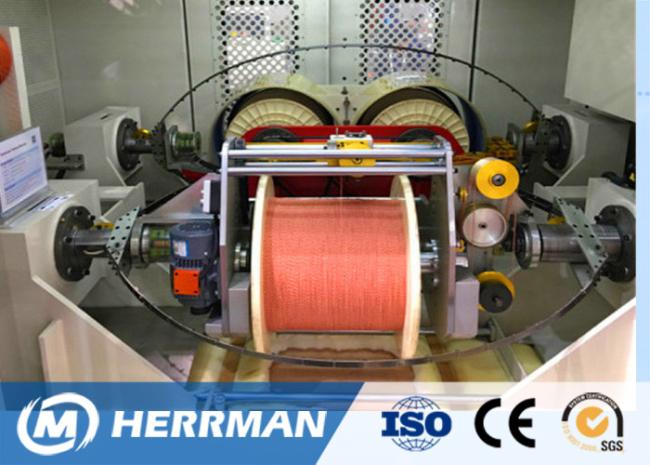

Torsion Free Pair Cable Twisting Machine With High Speed For LAN Cable

Application for:

Pairing of insulated wires for communication cables such as LAN cable (CAT5/CAT5E/CAT6/CAT7), date cable, signal cable, instrumentation cable etc.

Torsion Free Pair Twisting Machine Description:

● Torsion free single twist Payoff DIN500

● Take up DIN500

● PLC control system with color touch screen

Torsion Free Pair Twisting Machine Features:

1. Torsion free single twisting design, less damage to twist wire.

2. Perfect twisting cable quality. Lay length controlled via serve motor, user friendly HMI control, full programmable, accuracy within +/‐2%.

3. Large diameter capstan wheel, surface covered with rubber, better protection on twist wire.

4. PLC control system, easy operation.

3. Special use for LAN cable (CAT6/CAT7) pair twisting.

Main Technical Data

Conductor diameter	0.40 〜0.65mm
Max insulation diameter	2.60mm
Max twist diameter	5.20mm
Twist pitch range	10〜30mm ( every other 0 .5mm is one grade, change gear)
Bow rotate speed	250〜2500RPM ( stepless adjustable)
Twist speed	500〜5000TPM
Max line speed	150 m/m in
Twist direction	Left or right
Main motor power	7.5KW 380V Three-phase AC motor,frequency conversion
Pay-off bobbin	500(Outer diameter)X250(barrel diameter)X250(inner width) X56mm(shaft hole)
Take-up bobbin	500(Outer diameter)X250(barrel diameter)X250(inner width) X56mm(shaft hole)
Take-up bobbin lifting	Gear reducer motor lifting
Operating direction	From left to right or from right to left
Installation dimension	5.50m(L)X1.50m(W)X1.40m(H)
Total weight	2500kg
