Hv Cable Accessories Tetoron Semi Conductive Tape For Milliken Conductor
Price:
Negotiation
MOQ:
1set
Delivery Time:
10 working days
Brand:
Herrman
Product Description
Semi-Conductive Tetoron Tape for milliken conductor for HV cable
Construction
Nylon fabric with semi-conductive coating on both sides
Main Specification
| Property | Test method | JG-BNLD18 | JG-BNLD20 |
| Thickness | Test2/ISO9073-2 | 0.18+/-0.03mm | 0.20+/-0.03mm |
| Weight | Test3/ISO9073-1 | 150+/-25g/m2 | 175+/-25g/m2 |
| Tensile strength | Test10/ISO9073-3 | More than 150N/cm | ≥230N/cm |
| Elongation | Test10/ISO9073-3 | ≥20% | ≥20% |
| Surface resistance | Test8/DIN53482 | ＜1000 | ＜1000 |
| Volume resistance | Test9/DIN54345 | ＜1×10^6 | ＜1×10^6 |
| Shortterm stability | Jgtest 5 | 230degree centigrade | 230degree centigrade |
| Longterm stability | Test/IEC 216 | 145degree centigrade | 145degree centigrade |
Characteristics
Strong tape with high tensile strength
High resistance to extrusion penetration; high temperature resistance
Proven long-term and short-term stability
Low surface and volume resistance
REACH and RoHS compliant

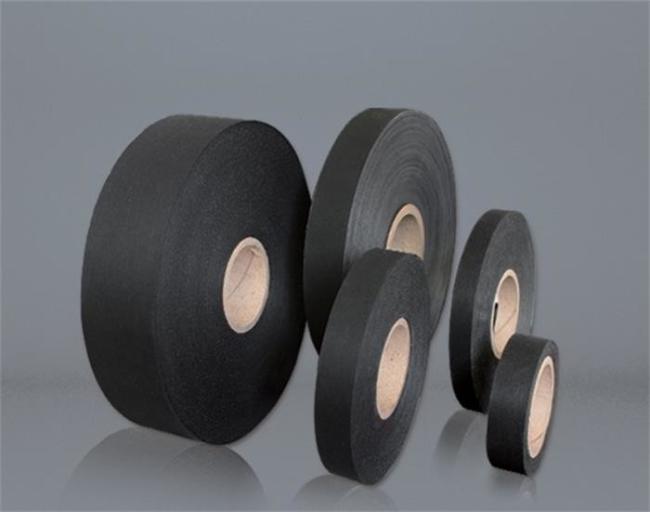

Tape Photo
