Caterpillar Traction Electric Wire Manufacturing Machine 1000mm Center Heigh
Electromagnetical Transformer Wire Production Line CTC Transposed Cable Machine
1. Introduction
Our Machine has high speed with invariablenes tension.
This machine is use for making the transformer wire.
It's according the request of transformer manufactory for improve the quality of the transformer wire.
2. Electrical Control
- Servo motor Lenz
- Variable frequency motor ABB
- PLC & driver Lenz
- Bearings Ha Er Bin or Wafangdian, China
- Torque motor Haozheng, China
- Electronic parts Mainly OMRON
- PLC SIEMENS
- Touch panel function Input/display
3. Main technical specification
- 15-8mmx2mm 9.5m/min 3990m/8 hours
- 21-6mmx1.5mm 7.5m/min 3150m/8 hours
- Center height 1000mm
- Power supply 3x415V±5%, 50Hz±1Hz
4. Components
| TQD II-2500 Swayable Caterpillar | 1 unit |
| Electrical control system | 1 set |
| LS-2000 Port type take-up stand | 1 unit |
| HW560/48(64) Transposed cage | 1 set |

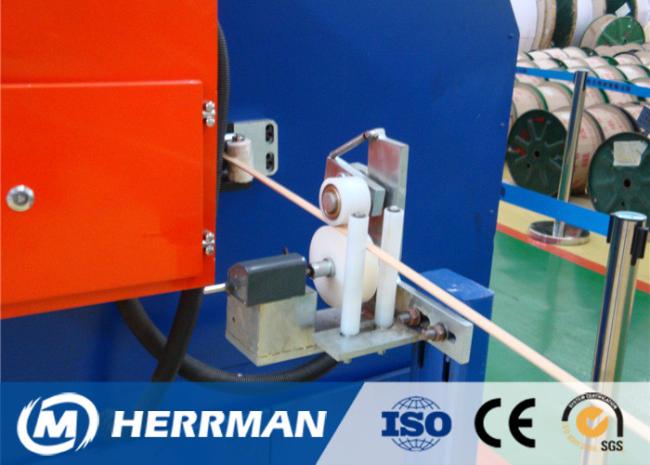

5. Picture for reference
