400~630mm Bobbin Size Armouring Machine High Carbon Steel Planetary Steel Wire Armouring Machine
400~630mm Bobbin Size Armouring Machine High Carbon Steel Planetary Steel Wire Armouring Machine
1. Application
This machine is mainly used for steel wire armouring.
2. Main Technical Specification
| Type | JL-400 | JL-500 | JL-630 | |
| Single conductor dia. | Cu | 1.0~5.0mm | 1.0~5.0mm | 1.0~5.0mm |
| Al | 1.6~5.0mm | 1.0~6.0mm | 1.8~6.0mm | |
| Insulated Wire | 2.0~6.0mm | 2.0~8.0mm | 4.2~10mm | |
| Max Out Dia. | 35mm | 45mm | 50mm | |
| Stranding Pitch | 6B | 43~754mm | 59.20~1010mm | 200~950mm |
| 12B | 43~754mm | 59.2~1010mm | 200~950mm | |
| 18B | 556~980mm | 67.4~1149mm | 200~950mm | |
| Stranding Speed | 6B | 70~167r/min | 51~121r/min | 85r/min |
| 12B | 70~167r/min | 51~121r/min | 85r/min | |
| 18B | 54~128r/min | 45~107r/min | 85r/min | |
| Line speed | 52.7m/min | 51.6m/min | 60m/min | |
| Pay off bobbin | PN400/PND400 | PN500/PND500 | PN630/PND630 | |
| Central pay off | PN1000~PN2500 | PN1000~PN2500 | PN1600 | |
| Take up bobbin | PN1000~PN2500 | PN1000~PN2500 | PN1000~PN2500 | |
3. Main Components
3.1 Ф1600 pintle type pay-off stand 1 set
3.2 Ф630 manual pay-off stand 1 set
3.3 # shape wire guiding stand 1 set
3.4 6B, 12B, 18B, 24B stranding cage each 1 set
3.5 Wire assembly die seat 4 sets
3.6 Non-metal taping device 1 set
3.7 Electric & mechanical meter counter 1 set
3.8 Φ2000 dual capstan device 1 set
3.9 Φ3150 portal type take-up with traversing stand 1 set
3.10 Mechanism transmission system 1 set
3.11Electric control system 1 set
3.12 Safety fence 1 set

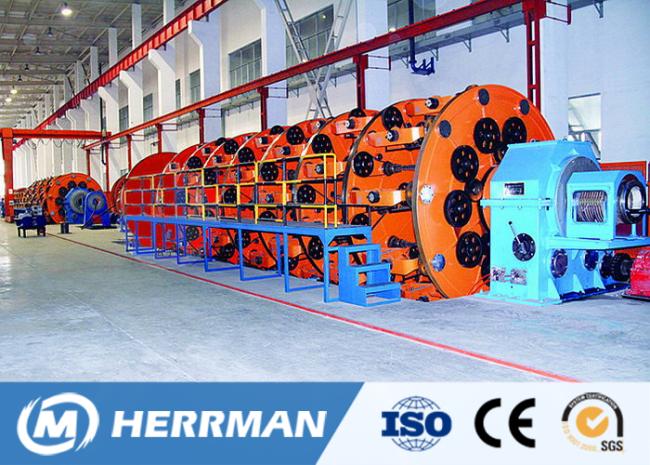

4. Photo
