Coloring And Rewinding Machine Fiber Optic Cable Production Line Optical Fiber Cable
Coloring And Rewinding Machine Fiber Optic Cable Production Line Optical Fiber
1. Application
The machine is used for Optical fiber coloring and rewinding.
The equipment is mainly used to color the surface of optical fibers and makes it easy to identify the multi-fibers within the loose tube. Also used to rewind fibers.
2. Technical Specification
| Type | HM05 | HM06 | HM07 |
| Coloring speed | 2000m/min(nitrogen gas) | 2500m/min(nitrogen gas) | 3000m/min(nitrogen gas) |
| Rewinding speed | ≤1800m/min | ≤2200m/min | ≤2600m/min |
| Pay off and take up tension | 0.3N~1.2N±0.05N | 0.3N~1.2N±0.05N | 0.4N~1.2N±0.05N |
| Traversing pitch | 0.1~1.0mm±0.01mm | 0.1~1.0mm±0.01mm | 0.1~1.0mm±0.01mm |
| Extra attenuation after coloring | ≤0.02dB/Km(SM,1500Nm) | ≤0.02dB/Km(SM,1500Nm) | ≤0.02dB/Km(SM,1500Nm) |
| Optical fiber reel size(max.) | 25km/50km reel weight 10kg | 25km/50km reel weight 10kg | 25km/50km reel weight 10kg |
3. Configuration of line
3.1 Movable optical fiber pay-off
3.2 Direction control
3.3 Fiber coloring and material supply system
3.4 UV curing oven
3.5 Capstan and counter unit
3.6 Take-up and traversing unit
3.7 Operation station
3.8 Release static system
3.9 Electric control system and software
3.10 Air fan

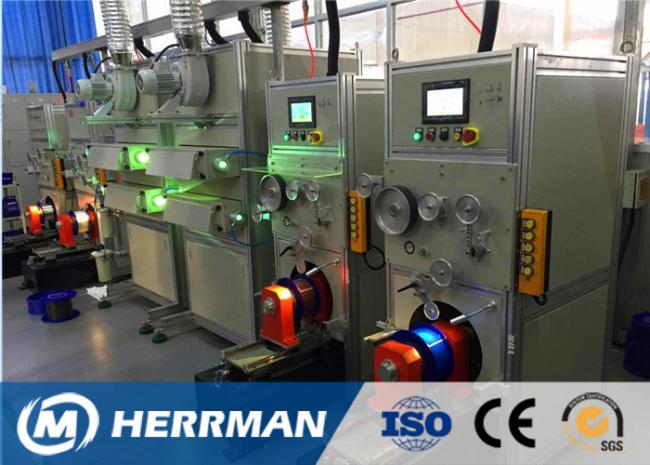

4. Picture for reference
