SZ Stranding Line Fiber Optic Cable Production Line Optical Fiber Cable
1. Application
The machine is mainly used for stranding optical fiber cable.
The use of fiber-optic cable is continuously increasing. To respond to the various technology requirement, we have developed a wide range production lines. The line is used for SZ stranding of loose tube elements 2-4.5mm
2. Technical Specification
| Loose tube dia./number of tube | 1.5-6.0mm/12 |
| Structure speed | 100m/min |
| Cable making speed(binding pitch=25mm)(stranding pitch=65) | 90m/min |
| SZ stranding angle | ±4~±18 |
| SZ stranding head speed(max) | 2000rpm |
| Binding head speed max. | 4000rpm |
| Binding pitch | 15-50mm |
| Stranding pitch | 50-200mm |
| Fiber loose tube pay off reel size | PN630-PN800 |
| Accuracy of the counter | 0.2% |

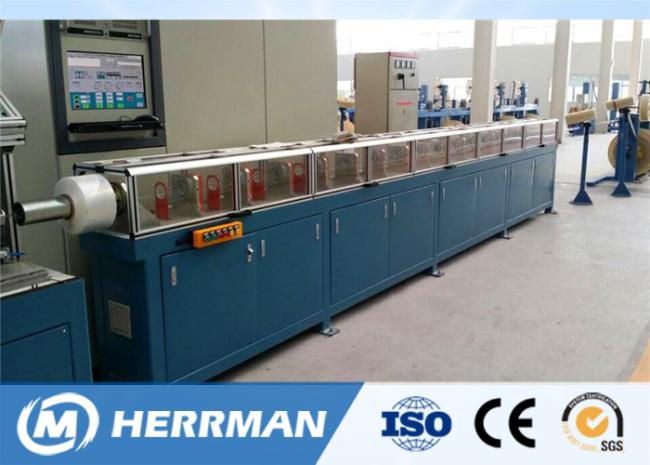

3. Pictures for reference
