Sheathing Line Fiber Optic Cable Production Line Optical Fiber Wire And Cable
Price:
By Negotiation
MOQ:
1 Set
Delivery Time:
within four month after receipt of down payment
Brand:
Herrman
Product Description
Sheathing Line Fiber Optic Cable Production Line Optical Fiber Wire And Cable
1. Application
1.1 To produce optical fiber cable inner sheathing on cable core.
1.2 To produce optical fiber cable outer sheathing on inner sheathing armoured or non-metallic cable core.
1.3 The machine will be capable to produce parallel dual steel wires or FRP enforced tube for optical fiber cable etc.
1.4 Extruding materials: LDPE, MDPE, HDPE, PA12 and PVC.
2. Technical Specification
| Cable diameter | 7-35mm |
| structure speed | 100m/min |
| line speed | 10-90m/min |
| line length | <60m approximately |
| screw type | BM |
| line center height | 1000mm |
| pay off reel size | PN1000-PN2000 |
| take up reel size | PN1000-PN2000 |
| extruder output | Max 280kg/h |

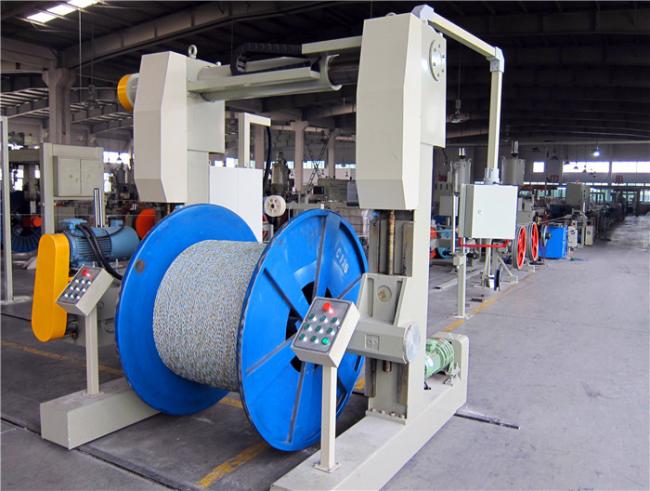

3. Picture for reference
