Simplex And Duplex Cable Fiber Optic Cable Production Line Indoor Cable

1. Application

The line is mainly used to produce 2 core indoor optical cable , including； Simplex cable , Duplex cable, FTTH cable and so on.

The line is mainly used to produce 2 core indoor optical cable and FTTH cable, Include: simplex cable, Duplex cable and FTTH cable.

2. Technical Specification

3. Line configuration

3.1 PN800 wire pay-off and dancer

3.2 Tight-fiber and optical fiber pay-off frame

3.3 FRP or thin wire pay-off

3.4 Pre-heating device

3.5 10 Cops aramid pay-off

3.6 SJ45×25 extruder and one head

(With feed, compound dryer device and master batch)

3.7 SJ20 extruder for strip

3.8 4m hot water trough and water tank

3.9 12m cooling water trough and refrigerating system

3.10 Blow dryer

3.11 Diameter control system

3.12 Φ500 single wheel capstan

3.13 Accumulator type tension controller

3.14 Swaying beam tension dancer

3.15 PN400-PN630 traversing take-up

3.16 Electric control system

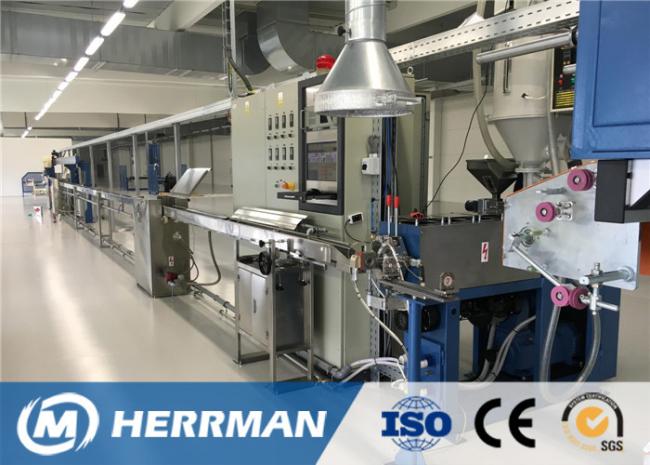

4. Picture for reference
