Extruding Line Fiber Optic Cable Production Line Tight Buffer Fiber Extruding machine
Price:
By Negotiation
MOQ:
1 Set
Delivery Time:
within four month after receipt of down payment
Brand:
Herrman
Product Description
Extruding Line Fiber Optic Cable Production Line Tight Buffer Fiber Extruder
1. Application
The line is used to extrude tight buffer fiber which the diameter is 0.6mm and 0.9mm. The extruding material can be LSZH , PVC.
2. Technical Specification
| Structure speed | 400m/min |
| Working speed | 300m/min |
| Dia. of optical fiber | 0.25-0.40mm |
| Tight buffer fiber dia. | 0.6mm,0.9mm |
| No. of optical fiber | 2 spools |
| Optical fiber reel size | 236x108mmx160;236x236mmx160 |
| Take up reel | 400 |
3. Line configuration
3.1 Dual optic-fiber pay-off frame 1
3.2 Preheating and dry device 1
3.3 SJ30 extruder 1
3.4 Hot water trough 4m
3.5 Hot water tank 1
3.6 Cooling water trough 8m
3.7 Blow dryer device 1
3.7 Diameter detecting system 1
3.9 Single wheel capstan with pressing belt 1
3.10 Take-up tension controller 1
3.11 Ф400 Take-up frame 1
3.12 Electric control system 1

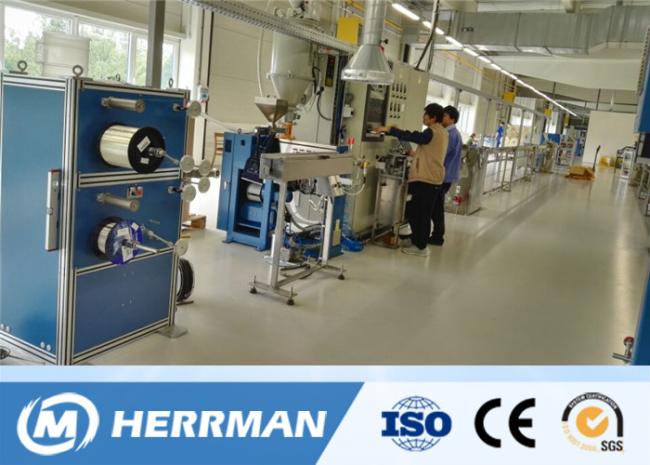

4. Picture for reference
