Indoor Tight Buffered Fiber Optic Cable Production Line With Dry Tube

Price Negotiable
Price: By Negotiation
MOQ: 1 SET
Delivery Time: 83 Working Days
Brand: Herrman
Product Description

Indoor Optical Fiber Cable Tight Buffer Production Line With Dry Tube



Application



The line is used to extrude tight buffer fiber and dry tube which the diameter is 0.6mm and 0.9mm.The extruding material can be LSZH, PVC.



The Production line consists of fiber pay-offs, preheating device, 30mm extruder, cooling system , blow dryer, diameter gauge, belt capstan, dual take-up and electric control system (PLC + touch screen).

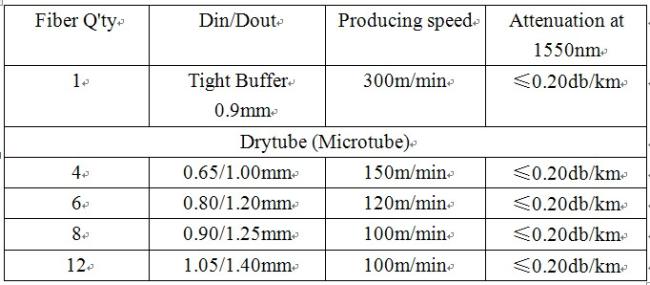

Technical parameters





Main Technical Data



  Structure speed   300m/min
  Working speed   250m/min
  Dia. of optical fiber   Φ0.25～Φ0.40mm
  Tight buffer fiber dia.   0.6mm , 0.9mm
  No. of optical fiber   2 spools
  Optical fiber reel size   φ236×108mm×φ160
  φ236×236mm×φ160
  Take-up reel   Φ400

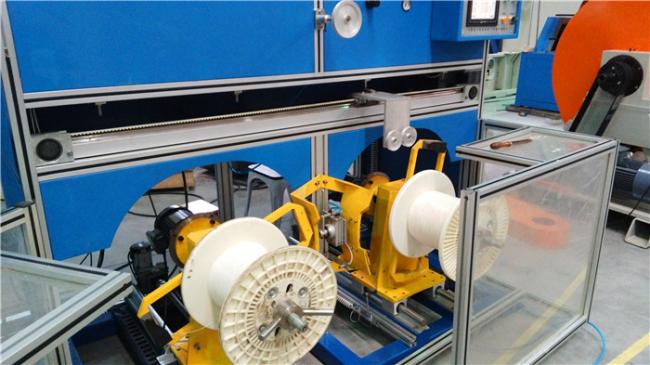

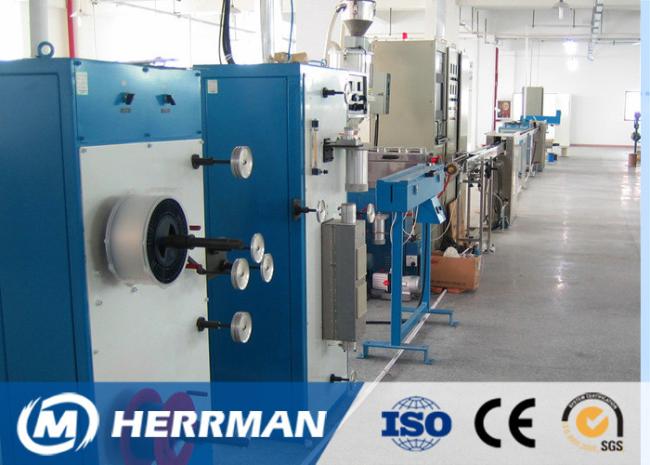

Machine Photo
