Rear Wheel Driven 1500kg 3 Wheel Electric Counterbalance Forklift
PRODUCT DESCRIPTION

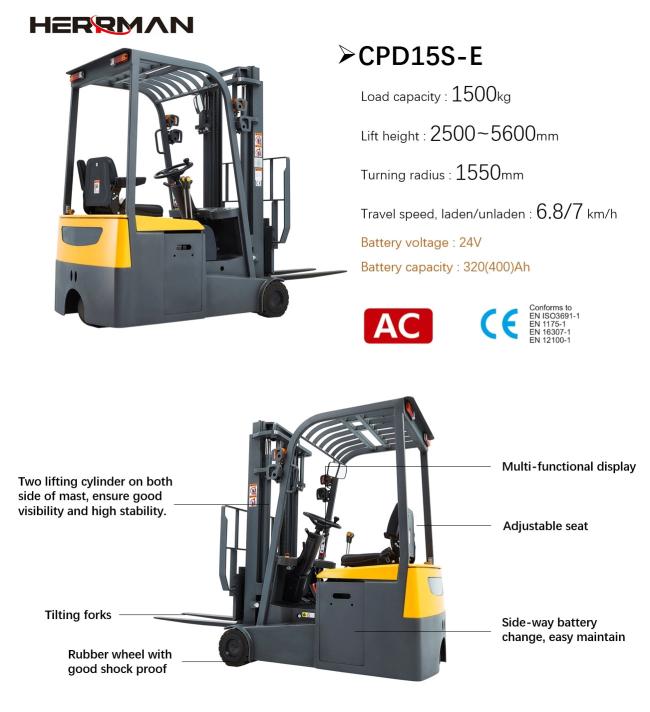

New Design 3 Wheel 1.5ton/1500kg Electric Power Fork Lift Electric Forklift With AC Motor
Advantages:
2. Rated capacity is 1500kg with side shift, all panels use steel with compact appearance and good durability.
3. Use AC motor without brush, free of maintenance.
4. High gradeability up to 10% with full laden.
5. The electric brake is used as the parking brake, which is easy to operate and safe.
6. Use hydraulic power steering is for light steering, have the function of steering priority.
7. Have option of cold-storage, full AC control system.

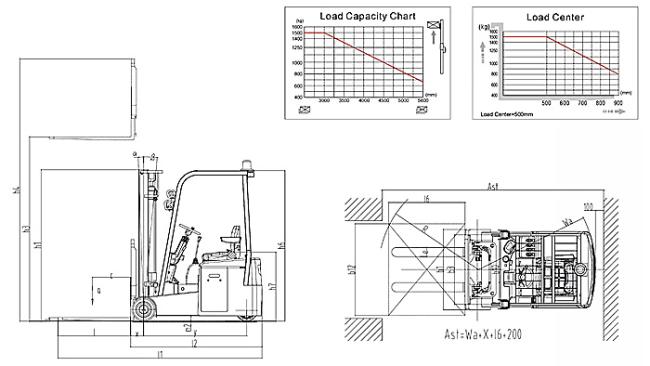

SIZE INFORMATION
| Model | CPD15S-E | |
| Capacity/rated load | Q(kg) | 1500 |
| Load centre distance | c(mm) | 500 |
| Lift height | h3(mm) | 2500~5600 |
| Load distance,centre of drive axle to fork | x(mm) | 170 |
| Wheelbase | Y(mm) | 1348 |
| Service weight(with battery) | kg | 2500 |
| Axle loading,laden front/rear | kg | 3280/710 |
| Axle loading,unladen front/rear | kg | 975/1525 |
| Height,mast lowered | h1(mm) | 1980(3M) |
| Free lift | h2(mm) | option |
| Height,mast extended | h4(mm) | 3500~6600 |
| Overall width | b1(mm) | 1055 |
| Fork dimensions | s/e/l(mm) | 35x100x950(1070) |
| Aisle width for pallets 1000*1200 crossways | Ast(mm) | 3050 |
| Aisle width for pallets 800*1200 lengthways | Ast(mm) | 3150 |
| Turning radius | Wa(mm) | 1550 |
| Travel speed,laden/unladen | Km/h | 6.8/7 |
| Lift speed,laden/unladen | mm/s | 100/150 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/320(400) |
FAQ
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
