Colorful Polyurethane EVA Fender Low Reaction Force Characteristic 2 Years Warranty

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: 5-10 work days
Brand: FLORESCENCE
Product Description

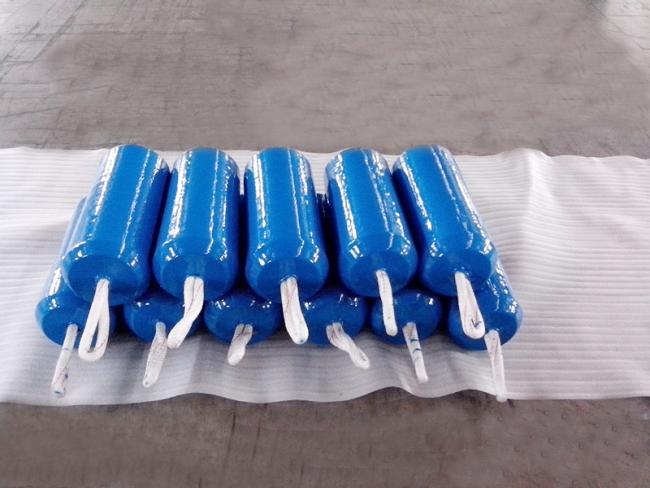

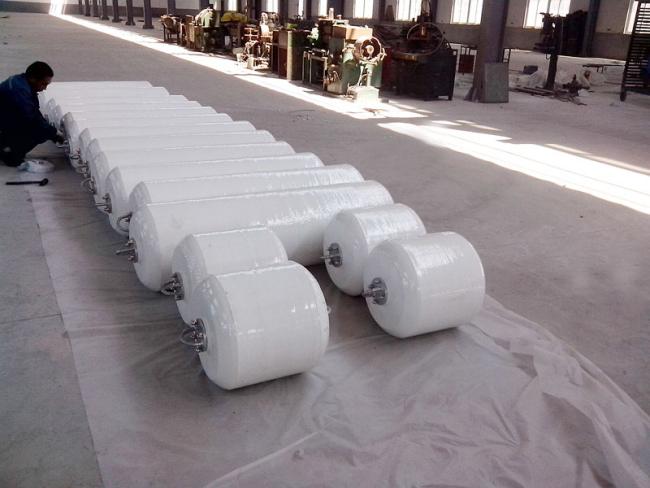

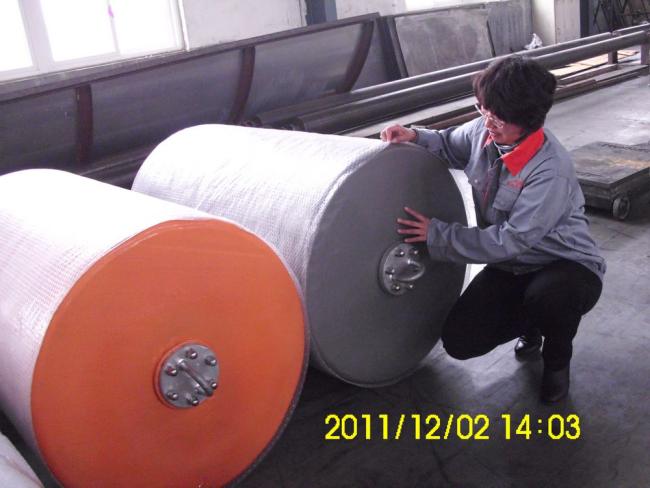

Colorful Polyurethane Marine Floating Fender Ship And Boat Eva Fender





FLORESCENCE polyurethane floating fender is also a kind of compressed fender which builds outer protective layer with polyurethane, materials and adopts polyurethane foaming material or plastic foaming as buffer medium;the destructive effects on docks and ships will be reduced by the compression to absorb the impact energy from ships in the course of using polyurethane floating fender.



FLORESCENCE manufactures the FLORESCENCE netless style foam filled marine fenders as the domestic standard in the industry and meets the most stringent quality and performance demands providing tough heavy-duty fendering systems for harbor, offshore and ship-to-ship applications. The widely used projects proven our foam filled fender is your best guarantee.



FL EVA fender advantages and features:



* Use flange coupling and easy to install ,move and use .



* High energy absorption and low reaction force



* No explosion risk,safety and reliability



* Many different sizes and shape available



* Tough, nylon filament reinforced polyurethane skin


* Unsinkable design and easy installation


* Low maintenance,burst resistance,and reliable performance



* Light but solid





Characteristic of FL foam filled EVA fender:



* With the general compression fender, solid foam filled polyurethane fender with floating performance, The installation position is not subject to tidal influence



* Compared with pneumatic fenders, has better energy absorption performance, and low reaction performance



* Compared with pneumatic fenders, does not require the use of check, inflatable, with maintenance-free; no explosion risk, with safety



* Product specifications according to the needs of manufacturing, in the polyurethane fender in the specifications of the largest



FL marine fender's range of use:



* The marine terminal fender



* Suitable for gravity and London Wharf,especially the large tidal range of the dock


* Particularly applicable to the ship by ship fender, floating fender more adaptability



* As the pier fender, protection of bridge piers,ships from damage;



* Ship-to-ship transfers,Navy berths,Oil and gas tankers,General cargo,Bulk cargo


* Ferries ,Container vessels,Cruise ships





Technical performance of EVA fender



Specification

DXL(mm)

60% Compression Deflection

(KG)

Weight Reference



(KN)

Reaction Force

(KN-M)

Energy Absorption


300x500 13 0.49 11
400x600 18 1.05 19
500x1000 38 2.18 42
600x1000 49 3.4 63
1000x1000 137 33 275
1000x1500 206 49 410
1000x2000 273 65 553
1200x1500 256 70 615
1200x2000 336 93 815
1500x2500 520 180 1550
1500x3000 626 217 1863
1600x3000 860 270 2110
2000x3500 992 458 3850
2000x4000 1120 506 4590
2200x4500 1402 682 6000



1. The above performance parameters measured are based on static state;



2. Above reaction force and energy absorption to tolerance of ±10%


3. Special sizes are available upon request processing;


4. Fender accessories have all been hot dip gal
