Double Disc Automated Metallographic Grinding Polishing Machine iGrind-844S in Stepless Speed
Double Disc Automated
Metallographic Grinding Polishing Machine iGrind-844S in Stepless Speed

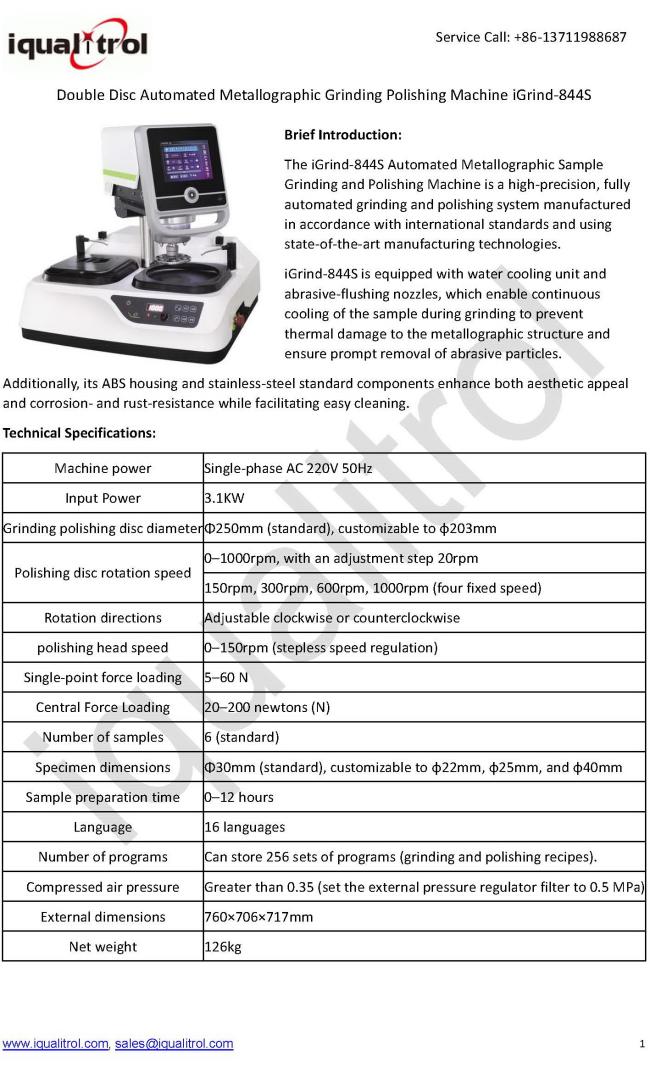

Download Technical Data:
Brief Introduction:
The iGrind-844S Automated Metallographic Sample Grinding and Polishing Machine is a high-precision, fully automated grinding and polishing system manufactured in accordance with international standards and using state-of-the-art manufacturing technologies.
iGrind-844S is equipped with water cooling unit and abrasive-flushing nozzles, which enable continuous cooling of the sample during grinding to prevent thermal damage to the metallographic structure and ensure prompt removal of abrasive particles.
Additionally, its ABS housing and stainless-steel standard components enhance both aesthetic appeal and corrosion- and rust-resistance while facilitating easy cleaning.
Technical Specifications:
| Machine power | Single-phase AC 220V 50Hz |
| Input Power | 3.1KW |
|
Grinding polishing disc diameter |
Φ250mm (standard), customizable to φ203mm |
|
Polishing disc rotation speed |
0–1000rpm, with an adjustment step 20rpm |
| 150rpm, 300rpm, 600rpm, 1000rpm (four fixed speed) | |
| Rotation directions | Adjustable clockwise or counterclockwise |
| polishing head speed | 0–150rpm (stepless speed regulation) |
| Single-point force loading | 5–60 N |
| Central Force Loading | 20–200 newtons (N) |
| Number of samples | 6 (standard) |
| Specimen dimensions |
Φ30mm (standard), customizable to φ22mm, φ25mm, and φ40mm |
| Sample preparation time | 0–12 hours |
| Language | 16 languages |
| Number of programs |
Can store 256 sets of programs (grinding and polishing recipes). |
| Compressed air pressure |
Greater than 0.35MPA (set external pressure regulator filter to 0.5MPa) |
| External dimensions | 760×706×717mm |
| Net weight | 126kg |
