Product Description

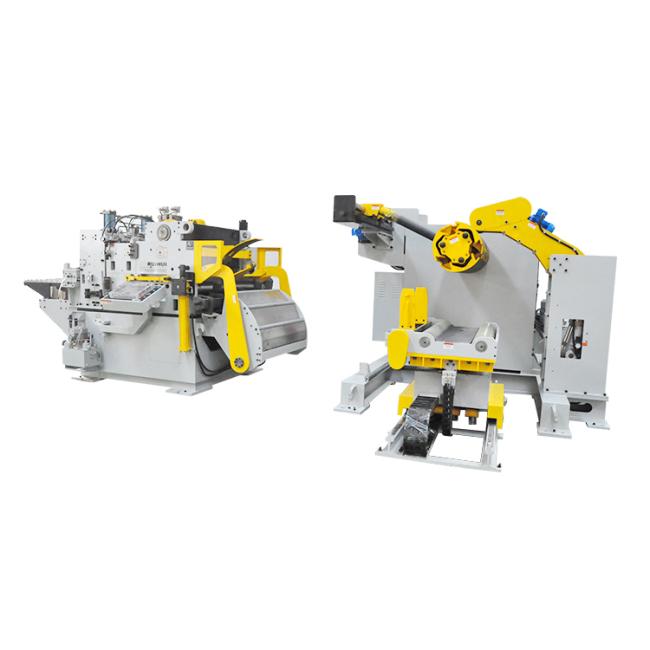

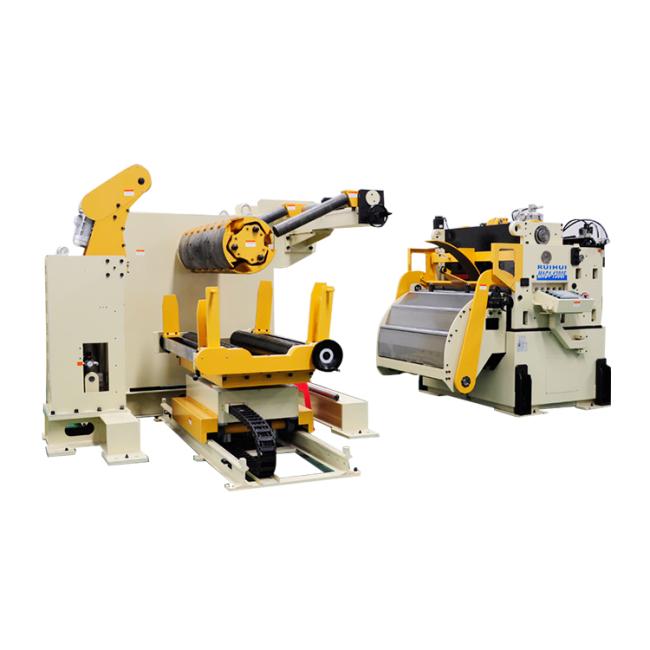

Precision Coil Decoiler Straightener Feeder For Metal Stamping / Stainless Steel
Standard Features
Motorized uncoiler
Variable speed operations
Hydraulic mandrel expansion
Pneumatic disk brakes
Pneumatic pressing arm
A frame for loacting the coil
Electric eye type loop control
11pcs straightener rolls
Worm gear adjustment of upper rolls
Servo-driven feeder-straightener
Options
Hydraulic coil car
Special expansion range
Automatic oiling unit
Hands-free input supporting
Specifications:
| Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F |
| Stock Width(mm) | 70~600 | 70~800 | 70~1000 | 70~1300 |
| Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 |
| Max.Coil Weight(kg) | 5000 | 5000 | 7000 | 10000 |
| Max.Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 |
| Coil I.D.(mm) | 508 | 508 | 508 | 508 |
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* |
| Max.Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 |
| Work Roll Number(piece) | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 |
| Feed Roll number(set) | 1 | 1 | 1 | 1 |
| Main Motor | AC7.5 | AC11.0 | AC11.0 | AC11.0 |
| Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc |
| Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 7.5 |
| Power(v) | 3 Phase 220V/380V/50HZ | |||
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straightening Performance:
| Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | |
| Stock Thickness (mm) |
0.8~2.3 | 600 | 800 | 1000 | 1300 |
| 2.8 | 933 | 933 | |||
| 3.2 | 714 | 714 | 714 | ||
| 4.0 | 457 | 457 | 457 | 457 | |
| 4.5 | 361 | 361 | 361 | 361 | |
| 5.0 | 293 | 293 | 293 | 293 | |
| 6.0 | 203 | 203 | 203 | 203 | |
