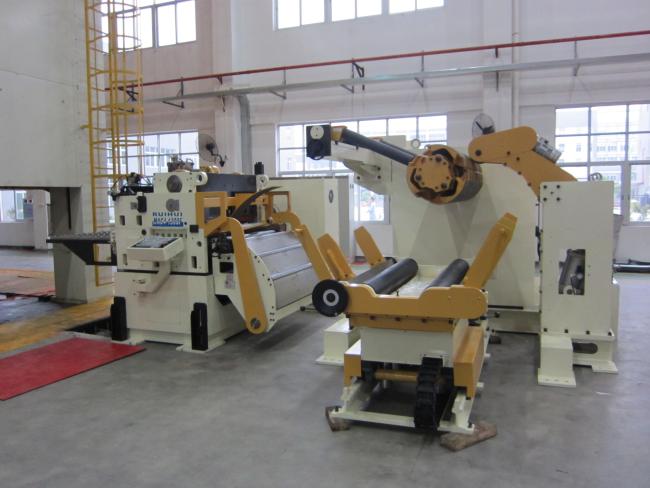

Japan Mitsubishi PLC Control Decoiler And Straightener Feeder For Press Machine
Japan Mitsubishi PLC Control Decoiler Straightener Feeder For Press Machine
About Decoiler Straightener Feeder:
1. Decoiler Straightener Feeder Introduction:
Our Decoiler Straightener Feeder speed can reach 0-22 m /min. And suitable all kinds of metal coil Uncoiling,Straightening and automatic Feeding.
Our Decoiler Straightener Feeder are suitable 0.5-6.0 mm thickness all metal coil uncoiling,straightening and feeding.Our Decoiler Straightener Feeder widely used to computer, mobile phone,automobile industry,appliances manufacturing, medical apparatus and instruments,Car Accessories, hardware & Metal parts etc industry.And matched all kinds of press machine.
2 . Decoiler Straightener Feeder Feature And Advantage:
1. Save factory area. 3 machines together one.
2. High precision:+/-0.05 mm
3. Suitable for material thickness :0.5-6.0 mm.
4. Suitable for all kinds of metal coil automatic straightening and feeding,Easy to operate.
5. Suitable for metal parts, electron, electrical appliance, toy and auto parts continuous pressing production, straightening and feeding.
6. Japan servo motor , PLC and other electrical parts,with little malfunction and long using time.High quality ,lowest maintenance.
7. Can feed different length at one time,easy operation, safe and high stability.
8. We can customize the machine.
9. Fast speed: 0-22 m/min.
10. Coil car , pressing arm, conveyor belt , shearing machine , oiling machine etc. for choosing.
Specifications:
| Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F |
| Stock Width(mm) | 70~600 | 70~800 | 70~1000 | 70~1300 |
| Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 |
| Max.Coil Weight(kg) | 5000 | 5000 | 7000 | 10000 |
| Max.Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 |
| Coil I.D.(mm) | 508 | 508 | 508 | 508 |
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* |
| Max.Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 |
| Work Roll Number(piece) | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 |
| Feed Roll number(set) | 1 | 1 | 1 | 1 |
| Main Motor | AC7.5 | AC11.0 | AC11.0 | AC11.0 |
| Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc |
| Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 7.5 |
| Power(v) | 3 Phase 220V/380V/50HZ | |||
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straightening Performance:
| Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F | |
| Stock Thickness (mm) |
0.8~2.3 | 600 | 800 | 1000 | 1300 |
| 2.8 | 933 | 933 | |||
| 3.2 | 714 | 714 | 714 | ||
| 4.0 | 457 | 457 | 457 | 457 | |
| 4.5 | 361 | 361 | 361 | 361 | |
| 5.0 | 293 | 293 | 293 | 293 | |
| 6.0 | 203 | 203 | 203 | 203 | |
