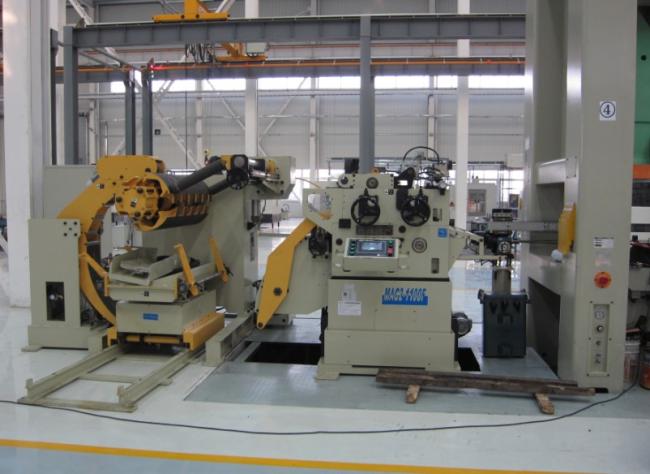

Aluminum Plate Coil Decoiler And Straightener Pneumatic Power Press Saving Space
Aluminum Plate Coil Decoiler Straightener Feeder For Pneumatic Power Press
Feature and advantage:
Specification:
| Item | MAC2-600F | MAC2-800F | MAC2-1000F | MAC2-1100F | MAC2-1300F | MAC2-1400F | MAC2-1500F | MAC2-1600F |
| Stock Width(mm) | 75-600 | 75-800 | 75-1000 | 75-1100 | 75-1300 | 75-1400 | 75-1500 | 75-1600 |
| Stock Thickness(mm) | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 |
| Max.Coil Weight(kg) | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| Max.Coil O.D.(mm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Coil I.D.(mm) | 508 | 508 | 508 | 508 | 508 | 508 | 508 | 508 |
| Max.Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 | 16-24 | 16-24 | 16-24 | 16-24 |
| Feed Accuracy(mm) | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
| Feed Roll | up 1 /down 1 | up 1 /down 1 | up 1 /down 1 | up 1 /down 1 | up 1 /down 1 | up 1 /down 1 | up 1 /down 1 | up 1 /down 1 |
| Work Roll | up 4 /down 3 | up 4 /down 3 | up 4 /down 3 | up 4 /down 3 | up 4 /down 3 | up 4 /down 3 | up 4 /down 3 | up 4 /down 3 |
| Back pressure Roll | provided | provided | provided | provided | provided | provided | provided | provided |
| Main Motor(kw) | AC7.5 | AC7.5 | AC7.5 | AC7.5 | AC7.5 | AC7.5 | AC11.0 | AC11.0 |
| Uncoil Motor(kw) | AC2.2 | AC2.2 | AC2.2 | AC2.2 | AC2.2 | AC2.2 | AC2.2 | AC2.2 |
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic | hydraulic | hydraulic | hydraulic | hydraulic |
| Air Supply(kg/cm2) | 5kg/cm² | 5kg/cm² | 5kg/cm² | 5kg/cm² | 5kg/cm² | 5kg/cm² | 5kg/cm² | 5kg/cm² |
| Power(v) | 3 Phase 220V/380V/50HZ | |||||||
Straigtening performance:
| Model/Width/Thickness | 0.3 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | 2.0 | 2.3 | 2.8 | 3.2 |
| MAC2-600F | 600 | 630 | ||||||||||
| MAC2-800F | 800 | 600 | ||||||||||
| MAC2-1000F | 1000 | 610 | 380 | 280 | ||||||||
| MAC2-1100F | 1100 | 600 | 420 | 270 | 210 | |||||||
| MAC2-1300F | 1300 | 780 | 540 | 410 | 330 | 250 | 165 | 130 | ||||
| MAC2-1400F | 1400 | 850 | 600 | 450 | 340 | 270 | 200 | 130 | 100 | |||
| MAC2-1500F | 1500 | 1000 | 700 | 450 | 350 | 280 | 220 | 160 | 110 | 90 | ||
| MAC2-1600F | 1600 | 1400 | 800 | 520 | 380 | 300 | 230 | 150 | 130 | 90 | 70 | |
Customer case
Manufacturing industry; the United States Lear Co, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.
And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.
hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.
RUIHUI has been established over the years, the company steady business, products are constantly upgrading, from the original simple roller feeder to NC servo feeding machine, NC 3 in 1 straightener feeder,multi station manipulator, coil handling systems, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.
At present the company to further develop the market, at the end of 2013, the total investment reached 30 million yuan, plant area of more than 15 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.
Why choose us?
1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval.
