High Precision Leveler Cum Decoiler And Straightener For Metal Sheet

Price Negotiable

Price: Negotiable

MOQ: 1 Set

Delivery Time: 30 work days

Brand: RUIHUI

Product Description

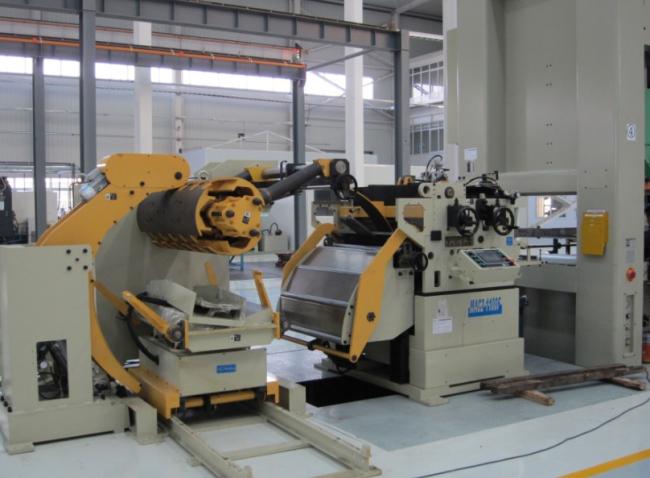

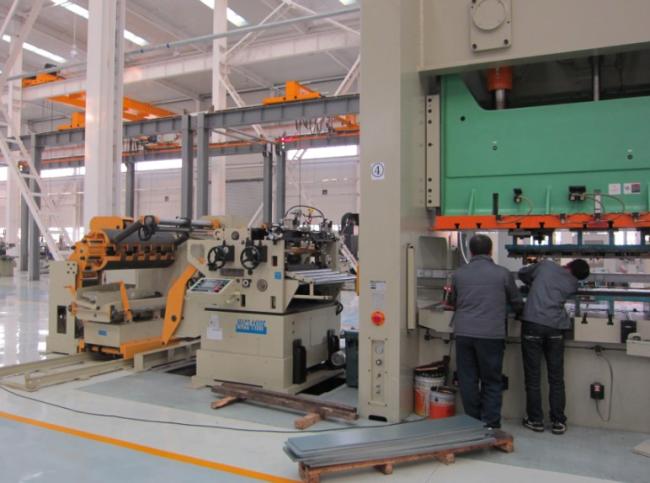

High Precision Leveler Cum Decoiler Straightener Feeder For Metal Sheet

Optional Equipments and Devices:

For uncoiler part

coil cart
press arm
feeding arm
hold arm
hydraulic expansion
Automatic Uncoiling

For Straightener part

phneumatic auto control or manual control

For Feeder part

oil printing device
cutter
expanding feeds

Specification:

Item	MAC2-600F	MAC2-800F	MAC2-1000F	MAC2-1100F	MAC2-1300F	MAC2-1400F	MAC2-1500F	MAC2-1600F
Stock Width(mm)	75-600	75-800	75-1000	75-1100	75-1300	75-1400	75-1500	75-1600
Stock Thickness(mm)	0.3-3.2	0.3-3.2	0.3-3.2	0.3-3.2	0.3-3.2	0.3-3.2	0.3-3.2	0.3-3.2
Max.Coil Weight(kg)	5000	5000	5000	5000	5000	5000	5000	5000
Max.Coil O.D.(mm)	1500	1500	1500	1500	1500	1500	1500	1500
Coil I.D.(mm)	508	508	508	508	508	508	508	508
Max.Line Speed(m/min)	16-24	16-24	16-24	16-24	16-24	16-24	16-24	16-24
Feed Accuracy(mm)	±0.15	±0.15	±0.15	±0.15	±0.15	±0.15	±0.15	±0.15
Feed Roll	up 1 /down 1	up 1 /down 1	up 1 /down 1	up 1 /down 1	up 1 /down 1	up 1 /down 1	up 1 /down 1	up 1 /down 1
Work Roll	up 4 /down 3	up 4 /down 3	up 4 /down 3	up 4 /down 3	up 4 /down 3	up 4 /down 3	up 4 /down 3	up 4 /down 3
Back pressure Roll	provided	provided	provided	provided	provided	provided	provided	provided
Main Motor(kw)	AC7.5	AC7.5	AC7.5	AC7.5	AC7.5	AC7.5	AC11.0	AC11.0
Uncoil Motor(kw)	AC2.2	AC2.2	AC2.2	AC2.2	AC2.2	AC2.2	AC2.2	AC2.2
Mandrel Expansion	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic	hydraulic
Air Supply(kg/cm2)	5kg/cm²	5kg/cm²	5kg/cm²	5kg/cm²	5kg/cm²	5kg/cm²	5kg/cm²	5kg/cm²
Power(v)	3 Phase 220V/380V/50HZ

Straigtening performance:

Model/Width/Thickness	0.3	0.6	0.8	1.0	1.2	1.4	1.6	1.8	2.0	2.3	2.8	3.2
MAC2-600F	600											630
MAC2-800F	800											600
MAC2-1000F	1000									610	380	280
MAC2-1100F	1100								600	420	270	210
MAC2-1300F	1300					780	540	410	330	250	165	130
MAC2-1400F	1400				850	600	450	340	270	200	130	100
MAC2-1500F	1500			1000	700	450	350	280	220	160	110	90
MAC2-1600F	1600		1400	800	520	380	300	230	150	130	90	70
