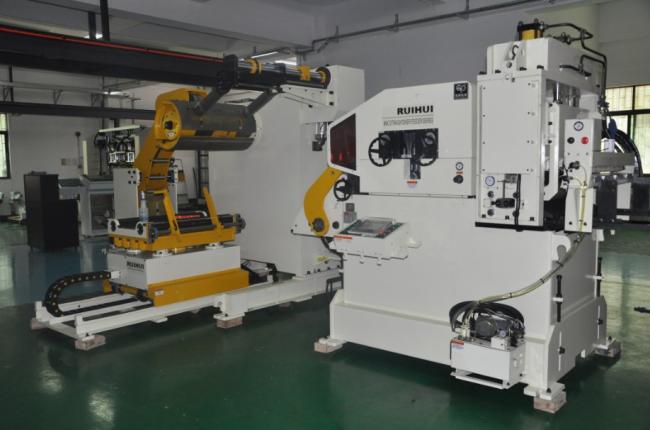

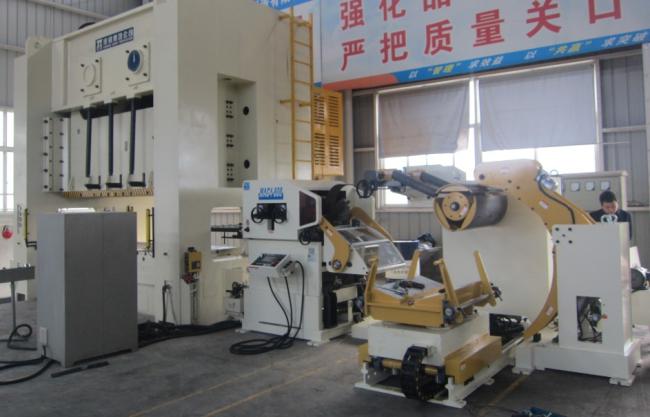

Metal Decoiler Straightener Press Feeding Equipment Hydraulic Cutter Hold Down Device
Metal Decoiler Straightener Feeder With Coil Feeder Straightener Hydraulic Cutter
Material Thickness: 0.6~6.0mm
The feeder leveler and uncoiler combination greatly reduces the error between feeding and leveling and save space.
The coil expansion adopts oil drive, and it brings high productivity.
The feeder model has more selection according to clients requirement.
Standard Accessories:
Electric Eye Loop Control System
Feeder and Straightener Rolls with A hard chrome finished.
Outgoing catenary to assistand support the material
Hold down device
Feeding line easily adjusts by advance worm gear screw jack device
Indicator
Inverse curve roil-easy to setup the up curve or down curve feeding exit direction
The uncoiler contain the butterfly brakes air compressor
Uncoiler-Inverter device
Specification:
| Specification | |||||
| Model | MAC4-400 | MAC4-600 | MAC4-800 | MAC4-1000 | MAC4-1300 |
| Stock Width(mm) | 70~400 | 70~600 | 70~800 | 70~1000 | 70~1300 |
| Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 |
| Max.Coil Weight(kg) | 5000 | 5000 | 7000 | 7000 | 7000 |
| Max.Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 | 1400 |
| Coil I.D.(mm) | 508 | 508 | 508 | 508 | 508 |
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | ~500* |
| Max.Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 | 16~24 |
| Work Roll Number(piece) | upper 4 | upper 4 | upper 4 | upper 4 | upper 4 |
| down 3 | down 3 | down 3 | down 3 | down 3 | |
| Feed Roll number(set) | 1 | 1 | 1 | 1 | 1 |
| Main Motor | AC5.5 | AC7.5 | AC7.5 | AC11.0 | AC11.0 |
| Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc |
| Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 |
| Power(v) | 3 Phase 220V/380V/50HZ | ||||
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | 0.49 |
| Straightening Performance | ||||||
| Model | MAC4-400 | MAC4-600 | MAC4-800 | MAC4-1000 | MAC4-1300 | |
| Stock Thickness (mm) | 0.6~1.3 | 400 | 600 | 800 | 1000 | 1300 |
| 2.0 | ||||||
| 2.3 | ||||||
| 2.5 | 1170 | |||||
| 2.8 | 933 | 933 | ||||
| 3.2 | 714 | 714 | 714 | |||
| 4.0 | 457 | 457 | 457 | 457 | ||
| 4.5 | 361 | 361 | 361 | 361 | 361 | |
| 5.0 | 293 | 293 | 293 | 293 | 293 | |
| 6.0 | 203 | 203 | 203 | 203 | 203 |
|
FAQ:
Q1:What kinds of machines do you have?
Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener
Feeder,Transfer systems,Press Feeding Line., etc
Q2:Is your equipment standard or customized?
Both, we can OEM & ODM with customers.
Q3:What are your equipments certification?
All our items are coming with CE certifications.
Q4:How did your company's quality system work?
“QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the
cheapest. But we can provide you excellent products to defeat your competitors.
Q5:How long is the warranty period of the machine?
We offer free service with a warranty period of one year, If it is operate in reasonable, the
machine can be used more than 10 years.
Q6: Is it possible to be a foreign agent and distributor?
If you are confidence and excellent service for after-sales, then welcome to be our agents or
distributors all over the world.
Q7:What’s your payment?
T/T,D/P,L/C,Western Union., etc
Q8:What’s the delivery?
“TIME IS GOLD” for you and for us, so we have professional team work and production line can
make nice quality in short time.
Service:
1. Pre-Sales Service:We have professional designers to meet the different requirement.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
