Auto Parts Decoiling And Straightening Machine Stamping And Feeding Equipment

3-in-1 feeder, auto parts stamping, stamping and feeding equipment

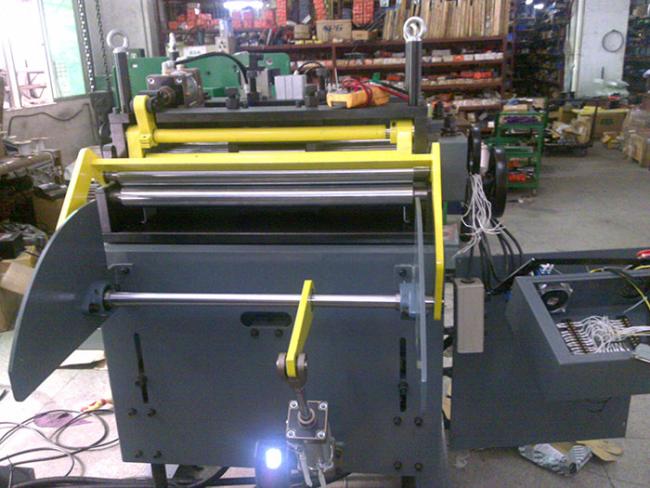

1. 3 in 1 feeding machine block arm is divided into front and rear sides, you can adjust the position of the material. The front baffle arm has two actions of swinging up and down and moving back and forth; the rear baffle arm only moves back and forth.

2. Adjustment of the front arm: adjust the front arm of the front arm by adjusting the hand arm to press it inward, let it clamp the outer adjustment shaft, and then turn the hand wheel.

Up and down swing adjustment: When the manual valve is hit to the rising position, the front arm will swing upwards, and the manual valve will hit the down position before the arm will swing to the lower position. When the manual valve hits the middle position, the front arm will stop. pancake machine

3. Adjustment of the rear arm: Pull the hand arm of the gear arm outward, let it clamp the inner adjustment shaft, and then turn the hand wheel to adjust the back and forth movement of the back arm.

Products:



Specification:

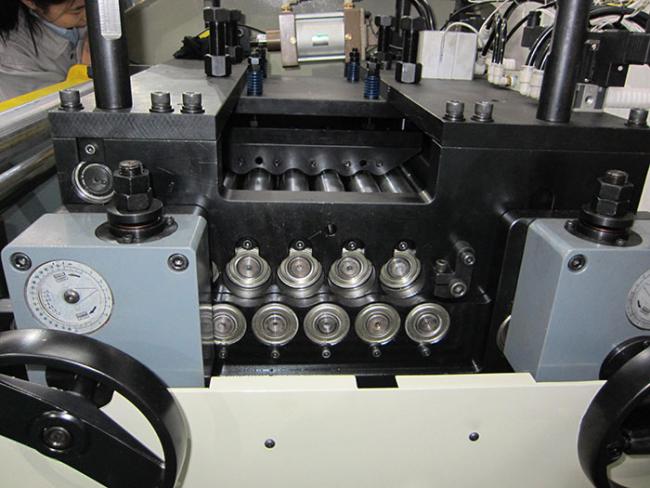

Straigtening performance:


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
