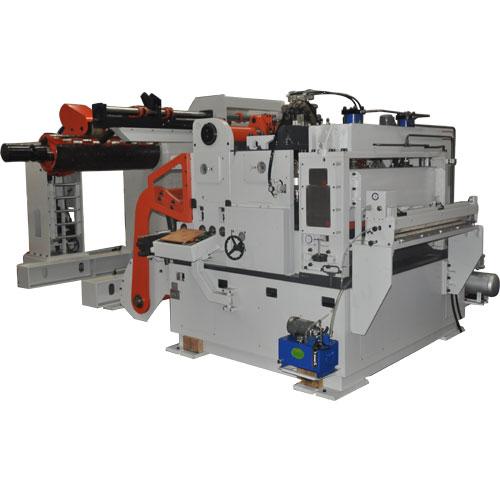

Uncoiler, wafer stamping, Guangzhou high-speed material coil feeder

The heavy-duty material frame hydraulic loading trolley consists of a V-shaped discharge platform, a lifting motor, a linear guide, a chain guide, a travel drive motor, a walking anti-override limit stop, and an operation control handle. The V-shaped discharge platform is a roller. The axle surface load-bearing form, the lifting motor is hydraulic type, the pressure-keeping valve can run smoothly when the load is controlled, the travel drive motor is a hydraulic motor, the speed can be adjusted by the throttle valve, and the travel switch + hard limit stop can effectively prevent the trolley Walking offside.

When the heavy-duty material frame equipped with the hydraulic loading trolley is actually used, the material roll is placed on the V-shaped discharge platform of the loading trolley, and the loading trolley automatically automatically centers the width according to the width of the material roll, automatically Lifting and lateral movement, the material roll is smoothly and accurately transferred to the main shaft of the rack to achieve precise positioning and feeding. At the same time, the trolley is provided with auxiliary feeding rollers and material roll anti-dumping baffles, when transferring materials with small material width. It can effectively prevent the material from falling over, and it is simple, convenient, fast and reliable.

Specification:


Straigtening performance:


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
