Durable Steel Coil Straightening Machines High Speed Stamping Automatic Feeding
Hangzhou steel coil high-speed stamping automatic feeding, Ruihui unwinding feeder

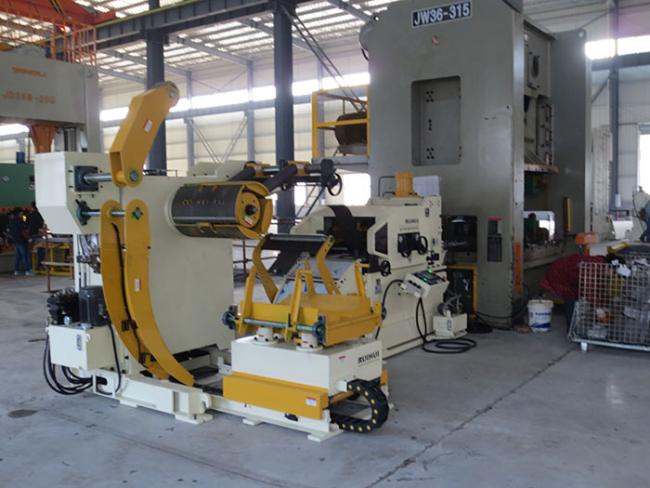

The hydraulic double-head material frame is a special-purpose material frame specially designed and manufactured by Ruihui Machinery for large-scale high-speed stamping automatic production line. The frame, rotary shaft and rotary box, rotary joint, oil cylinder and expansion and contraction cylinder are all tailored. Customized, the unwinding and shrinking roller can carry more than 2T on one side, and the unwinding is fast and stable.
Oil double head material frame advantages:
1. Ruihui hydraulic double-head material frame adopts the new type of frame, rotary shaft and rotary box structure. The advantage is that the center of gravity of the material frame frame is low, and the dynamic balance performance of the rotary body is good, so the unwinding speed allowed by the double-head material frame High, strong tension and stable work.
2. The double-roller of the oil-pressed double-head material frame is symmetrically arranged, the upper unwinding is convenient, the time is short, the working efficiency is high, and the reel cantilever is short, each bearing half of the weight and tension, so no double-head material roll is required. The barrel is designed to support the movement and prevent the drum from being deformed too much due to the weight of the coil.
3. The hydraulic double-head material frame is made up of a positive cone and a slider type reel structure. The reel has simple structure and convenient assembly. The processing and manufacturing of key parts such as reel shaft, sector plate, slider and tie rod are greatly reduced, and computer dynamic simulation design and finite element analysis can be used. Ruihui Machinery adopts space four-node entity. Unit, the model was split. The entire finite element model has a total of more than 170,000 units and more than 30,000 nodes, which makes the structure more reasonable and the dimensional accuracy is greatly improved.
Specification:
| Model | MAC2-400 | MAC2-500 | MAC2-600 | MAC2-800 | ||
| Stock Width(mm) | 50-400 | 50-500 | 50-600 | 50-800 | ||
| Stock Thickness(mm) | 0.3~3.2 | 0.3-3.2 | 0.3-3.2 | -3.2 | ||
| Max.Coil Weight(kg) | 3000 | 3000 | 3000 | 5000 | 5000 | 7000 |
| Max.Coil O.D.(mm) | 1200 | 1200 | 1200 | |||
| Coil I.D.(mm) | 8 | 8 | 508 | 508 | ||
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | ||
| Max. Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 | ||
| Work Roll Number(pieces) | upper 6 lower 5 |
upper 6 lower 5 |
upper 6 lower 5 |
upper 6 lower 5 |
||
| Feed Roll Number(set) | 1 | 1 | 1 | 1 | ||
| Main Motor(kw) | AC2.9 | AC2.9 | AC4.4 | AC4.4 | ||
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic | ||
| Reel Motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
| Power(V) | 3 Phase 220V/380V/50HZ | |||||
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | ||
Straigtening performance:
| tock Thicknees (mm) | Stock Width (mm) | |||
| 0.3 | 400 | 500 | 600 | 800 |
| 0.4 | ||||
| 0.6 | ||||
| 0.8 | ||||
| 1.0 | ||||
| 1.2 | ||||
| 1.4 | ||||
| 1.6 | 470 | 470 | ||
| 1.8 | 400 | 400 | ||
| 2.0 | 360 | 360 | ||
| 2.3 | 300 | 300 | 300 | 300 |
| 2.5 | 230 | 230 | 230 | 230 |
| 2.8 | 150 | 150 | 150 | 150 |
| 3.2 | 110 | 110 | 110 | 110 |
*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
