Unwinding High Speed Feeder Sheet Leveling Machine Stamping Stainless Steel Belt
Guangdong stamping stainless steel belt, unwinding feeder, Ruihui leveling machine

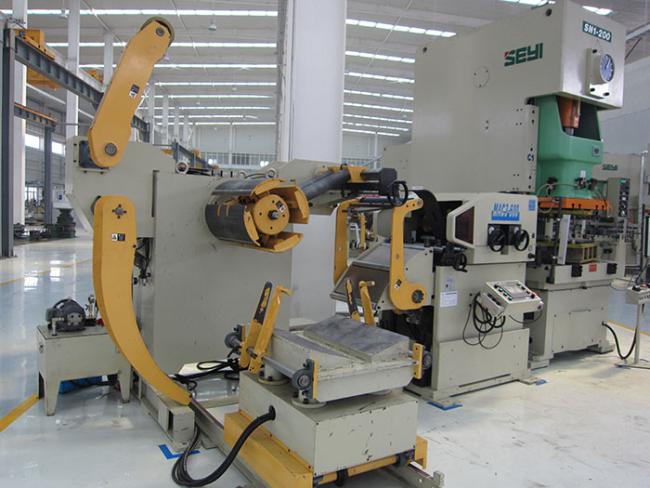

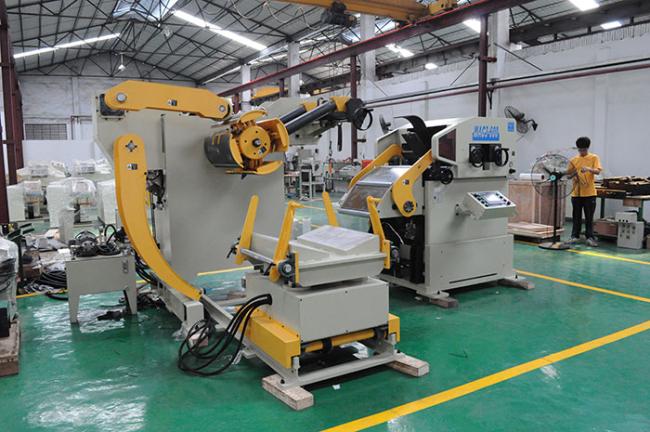

The three-in-one feeder is the best alternative to the mainstream three-machine independent split stamping line equipment of material rack, leveling machine and feeder. It is also the most advanced and latest generation of automation equipment, which can be widely used in thin plates. Unwinding, leveling and feeding of medium, thick and super thick plate materials.
Ruihui three-in-one feeder technical advantages:
The three-in-one feeder has three functions: unwinding, leveling and feeding. It combines mechanical, hydraulic, electrical and automation technologies to represent the world's most advanced stamping automation equipment technology.
It has the advantages that many traditional split stamping production lines can't match, high leveling feeding precision, good synchronism, high production efficiency, high degree of automation, simple and convenient operation, excellent performance, easy maintenance and long service life.
The three-in-one feeder has excellent product performance, new unwinding, leveling and feeding structure, new type of material, supporting material, folding device, complete hydraulic power system, flat feeding and feeding machine head, perfect The automatic lubrication system is equipped with a stand-alone operation control platform.
It can be fully automated, easy to operate, high degree of automation, high production efficiency, good quality of stamping finished products, and very simple and convenient to maintain and unwind, feeding, feeding, leveling, feeding and debugging.
Specification:
| Model | MAC2-400 | MAC2-500 | MAC2-600 | MAC2-800 | ||
| Stock Width(mm) | 50-400 | 50-500 | 50-600 | 50-800 | ||
| Stock Thickness(mm) | 0.3~3.2 | 0.3-3.2 | 0.3-3.2 | -3.2 | ||
| Max.Coil Weight(kg) | 3000 | 3000 | 3000 | 5000 | 5000 | 7000 |
| Max.Coil O.D.(mm) | 1200 | 1200 | 1200 | |||
| Coil I.D.(mm) | 8 | 8 | 508 | 508 | ||
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | ||
| Max. Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 | ||
| Work Roll Number(pieces) | upper 6 lower 5 |
upper 6 lower 5 |
upper 6 lower 5 |
upper 6 lower 5 |
||
| Feed Roll Number(set) | 1 | 1 | 1 | 1 | ||
| Main Motor(kw) | AC2.9 | AC2.9 | AC4.4 | AC4.4 | ||
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic | ||
| Reel Motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
| Power(V) | 3 Phase 220V/380V/50HZ | |||||
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | ||
Straigtening performance:
| tock Thicknees (mm) | Stock Width (mm) | |||
| 0.3 | 400 | 500 | 600 | 800 |
| 0.4 | ||||
| 0.6 | ||||
| 0.8 | ||||
| 1.0 | ||||
| 1.2 | ||||
| 1.4 | ||||
| 1.6 | 470 | 470 | ||
| 1.8 | 400 | 400 | ||
| 2.0 | 360 | 360 | ||
| 2.3 | 300 | 300 | 300 | 300 |
| 2.5 | 230 | 230 | 230 | 230 |
| 2.8 | 150 | 150 | 150 | 150 |
| 3.2 | 110 | 110 | 110 | 110 |
*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
