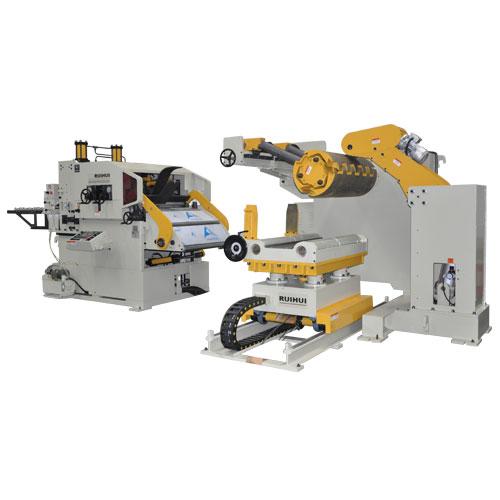

Automatic Metal Stamping Load Car Mandrel Expansion Uncoiler Decoiler Straightener Feeder Machine
The unique back-and-forth yaw shifting feeding mode of the servo feeder can minimize the scraps generated during stamping production, improve the production efficiency, and improve the material utilization rate, especially suitable for the production of wafers.
NC servo feeder is a wide range of feeders driven by servo motor. Its advantages are: easy operation, high feeding accuracy, multi-stage feeding, convenient feeding length, maximum feeding length up to 9999.99mm.
The air feeder and the roller feeder can do this, and the NC feeder can do the same. It is widely used in the stamping industry of automobiles, electrical appliances, computer accessories, wide shelf materials and long feeding steps.
Here you still have to tell you that the servo feeder can only feed in one straight line, and when it is used in the blanking production of the punching machine, there will be a lot of scraps, which will cause great material waste.
Therefore, the yaw feeder is a new type of machine specially developed for the processing of wafer blanking. When it is used with the punching machine, it can be fed straight or moved back and forth.
And only need to set the yaw angle and yaw distance to automatically achieve the purpose of round and round cutting when cutting. Relatively speaking, production costs can be effectively controlled.
Specification:
| Model | MAC2-400 | MAC2-500 | MAC2-600 | MAC2-800 | ||
| Stock Width(mm) | 50-400 | 50-500 | 50-600 | 50-800 | ||
| Stock Thickness(mm) | 0.3~3.2 | 0.3-3.2 | 0.3-3.2 | -3.2 | ||
| Max.Coil Weight(kg) | 3000 | 3000 | 3000 | 5000 | 5000 | 7000 |
| Max.Coil O.D.(mm) | 1200 | 1200 | 1200 | |||
| Coil I.D.(mm) | 8 | 8 | 508 | 508 | ||
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | ||
| Max. Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 | ||
| Work Roll Number(pieces) | upper 6 lower 5 | upper 6 lower 5 | upper 6 lower 5 | upper 6 lower 5 | ||
| Feed Roll Number(set) | 1 | 1 | 1 | 1 | ||
| Main Motor(kw) | AC2.9 | AC2.9 | AC4.4 | AC4.4 | ||
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic | ||
| Reel Motor(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 |
| Power(V) | 3 Phase 220V/380V/50HZ | |||||
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | ||
Straigtening performance:
| tock Thicknees (mm) | Stock Width (mm) | |||
| 0.3 | 400 | 500 | 600 | 800 |
| 0.4 | ||||
| 0.6 | ||||
| 0.8 | ||||
| 1.0 | ||||
| 1.2 | ||||
| 1.4 | ||||
| 1.6 | 470 | 470 | ||
| 1.8 | 400 | 400 | ||
| 2.0 | 360 | 360 | ||
| 2.3 | 300 | 300 | 300 | 300 |
| 2.5 | 230 | 230 | 230 | 230 |
| 2.8 | 150 | 150 | 150 | 150 |
| 3.2 | 110 | 110 | 110 | 110 |
*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
