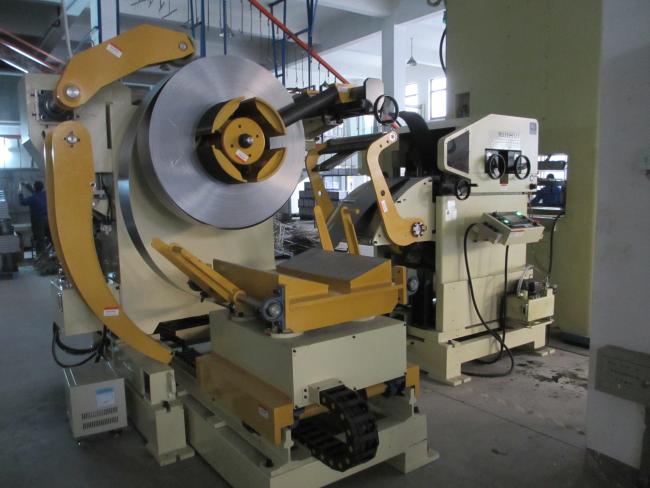

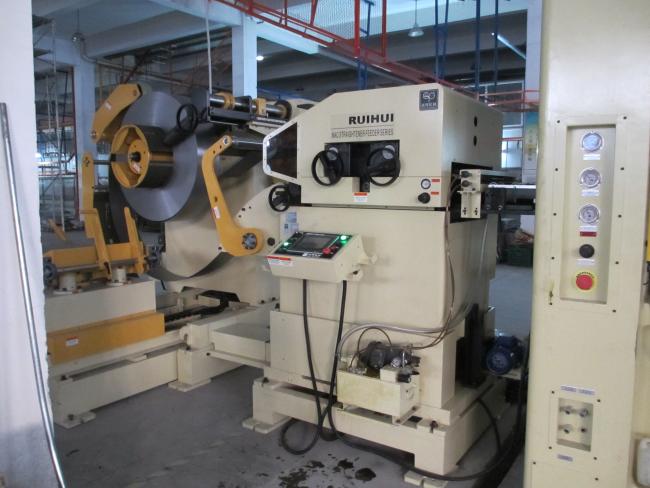

600mm Width AC4.4kw Steel Coil Straightening Machines
The beam feeder in the feeder is a new type of product that the technicians independently innovate and research and develop according to the market demand. It is a numerical control product that can be adapted to the use of small and medium-sized enterprises. It is hoped that this feeder product can be practically applied in production. In the middle, it can increase the production efficiency of enterprises.
The automatic feeding cutting machine is a kind of automatic feeding machine. It adopts a four-column double cylinder structure to achieve high-tonnage cutting. Now it is necessary to know the characteristics of the feeding machine.
Saving energy consumption, based on the precision four-column cutting machine, we increase the single-sided or double-sided automatic feeding device, which improves the efficiency and safety of the machine tool, and improves the production efficiency of the whole machine by 2 to 3 times.
Automatic feeding cutting machine is suitable for leather processing, garment industry, shoe industry, luggage industry, packaging industry, toy industry, stationery industry, automobile industry. Forming knife mold for leather, rubber, plastic, cardboard, cloth, foam, nylon , artificial leather, PVC board and other materials cutting operations.
Specification:
| Model | MAC3-400 | MAC3-600 | MAC3-800 | MAC3-1000 | ||
| Stock Width(mm) | 50-400 | 50-600 | 70-800 | 70-1000 | ||
| Stock Thickness(mm) | 0.3~4.5 | 0.3-4.5 | 0.3-4.5 | 3.2-4.5 | ||
| Max.Coil Weight(kg) | 5000 | 5000 | 5000 | 7000 | 7000 | |
| Max.Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 | ||
| Coil I.D.(mm) | 508 | 508 | 508 | 508 | ||
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* | ||
| Max. Line Speed(m/min) | 16-24 | 16-24 | 16-24 | 16-24 | ||
| Work Roll Number(pieces) | upper 4 lower 3 |
upper 4 lower 3 |
upper 4 lower 3 |
upper 4 lower 3 |
||
| Feed Roll Number(set) | 1 | 1 | 1 | 1 | ||
| Main Motor(kw) | AC4.4 | AC4.4 | AC5.5 | AC7.5 | ||
| Mandrel Expansion | hydraulic | hydraulic | hydraulic | hydraulic | ||
| Reel Motor(kw) | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 | |
| Power(V) | 3 Phase 220V/380V/50HZ | |||||
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 | ||
Straigtening performance:
| stock Thicknees (mm) | MAC3-400 | MAC3-600 | mac3-800 | MAC3-1000 |
| 0.3 | 400 | 600 | 800 | 1000 |
| 1.0 | 750 | |||
| 1.2 | 700 | 600 | ||
| 1.6 | 590 | 480 | 430 | |
| 1.8 | 500 | 420 | 380 | |
| 2.0 | 430 | 370 | 330 | |
| 2.3 | 360 | 320 | 290 | |
| 2.8 | 370 | 290 | 250 | 230 |
| 3.2 | 300 | 250 | 220 | 200 |
| 4.5 | 160 | 160 | 150 | 110 |
*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
