Hydraulic Three In One 245N/Mm2 3.7kw Leveler Feeder
RUIHUI Machinery 3 in 1 Coil Steel Sheet Decoiler Straightener Feeding Machine
Product Description

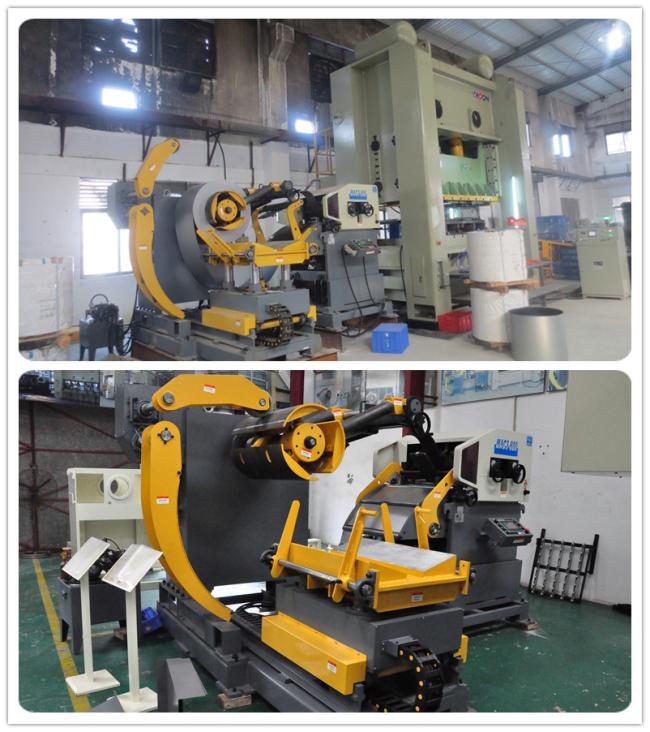

What is 3 in 1 Uncoiler Straightener Feeder
3 in 1 uncoiler straightener feeder is the high quality fully automatic equipment that integrates the straightening and feeding processes into a single machine, which has the advantage of superior straightening capabilities and simple operation. It can be incorporated into the press lines, cut-to-length lines and stamping systems for coil materials of all manufacturers.
Time-saving, space-saving, and labor-saving features embody the high economical use of haiwei coil uncoiler straightener feeder. The European servo system and special straightening rolls enable 3 in 1 uncoiler straightener feeder to achieve consistently excellent straightening results.The efficiency of feeding also has been enhanced, because feed roll pressure is easily adjusted by using an air cylinder.
According to coil material features, a variety of coil feeder that you can opt for perfectly meet the different need.
Application scope of three-in-one feeder:
1. Products are widely used in stamping and shearing in hardware, stamping, electronics, electrical appliances, technology, auto parts, metal, packaging, industry, aviation, cabinets, automobiles, technology, machinery, electrical, electromechanical and other industries.
2. It is suitable for steel strip such as low carbon steel plate, galvanized steel plate, aluminum plate, copper plate, cold rolled plate, hot rolled plate, stainless steel, iron plate, pickling plate, high strength cold rolled plate and other metal coils.
Specification:
|
Model |
MAC3-400 |
MAC3-600 |
MAC3-800 |
MAC3-1000 |
|
|
Stock Width(mm) |
50~400 |
50~600 |
70~800 |
70~1000 |
|
|
Stock Thickness(mm) |
0.3~4.5 |
0.3~4.5 |
0.3~4.5 |
0.3~4.5 |
|
|
Max.Coil Weight(kg) |
5000 |
5000 |
5000 |
7000 |
7000 |
|
Max.Coil O.D.(mm) |
Φ1400 |
Φ1400 |
Φ1400 |
Φ1400 |
|
|
Coil I.D.(mm) |
Φ508 |
Φ508 |
Φ508 |
Φ508 |
|
|
Feed Length(mm) |
~500* |
~500* |
~500* |
~500* |
|
|
Max.Line Speed(m/min) |
16~24 |
16~24 |
16~24 |
16~24 |
|
|
Work Roll Number(piece) |
up 4 / down 3 |
up 4 / down 3 |
up 4 / down 3 |
up 4 / down 3 |
|
|
Feed Roll number(set) |
1 |
1 |
1 |
1 |
|
|
Main Motor |
AC4.4 |
AC4.4 |
AC5.5 |
C7.5 |
|
|
Mandrel Expansion |
hydraulic |
hydraulic |
hydraulic |
hydraulic |
|
|
Reel Motor(kw) |
2.2 |
2.2 |
2.2 |
3.7 |
3.7 |
|
Power(v) |
3 Phase 220V/380V/50HZ |
||||
|
Operating Air(Mpa) |
0.49 |
0.49 |
0.49 |
0.49 |
|
Straightening Performance:
|
Model |
MAC3-400 |
MAC3-600 |
MAC3-800 |
MAC3-1000 |
|
|
Stock Thickness |
0.3~0.8 |
400 |
600 |
800 |
1000 |
|
1.0 |
750 |
||||
|
1.2 |
700 |
600 |
|||
|
1.6 |
590 |
480 |
430 |
||
|
1.8 |
500 |
420 |
380 |
||
|
2.0 |
430 |
370 |
330 |
||
|
2.3 |
360 |
320 |
290 |
||
|
2.8 |
370 |
290 |
250 |
230 |
|
|
3.2 |
300 |
250 |
220 |
200 |
|
|
4.5 |
160 |
160 |
150 |
110 |
|
*The avove flgures are the material having yield strength of 245N/mm2 max.
FAQ:
Q1:What kinds of machines do you have?
Our main products are:Nc Servo Roll Feeder,Uncoiler, Straightener, 3 in1 Straightener
Feeder,Transfer systems,Press Feeding Line., etc
Q2:Is your equipment standard or customized?
Both, we can OEM & ODM with customers.
Q3:What are your equipments certification?
All our items are coming with CE certifications.
Q4:How did your company's quality system work?
“QUALITY IS OUR CULTURE” Our quality is not the best in the world, and the price is not the
cheapest. But we can provide you excellent products to defeat your competitors.
Q5:How long is the warranty period of the machine?
We offer free service with a warranty period of one year, If it is operate in reasonable, the
machine can be used more than 10 years.
Q6: Is it possible to be a foreign agent and distributor?
If you are confidence and excellent service for after-sales, then welcome to be our agents or
distributors all over the world.
Q7:What’s your payment?
T/T,D/P,L/C,Western Union., etc
Q8:What’s the delivery?
“TIME IS GOLD” for you and for us, so we have professional team work and production line can
make nice quality in short time.
Service:
1. Pre-Sales Service:We have professional designers to meet the different requirement.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
