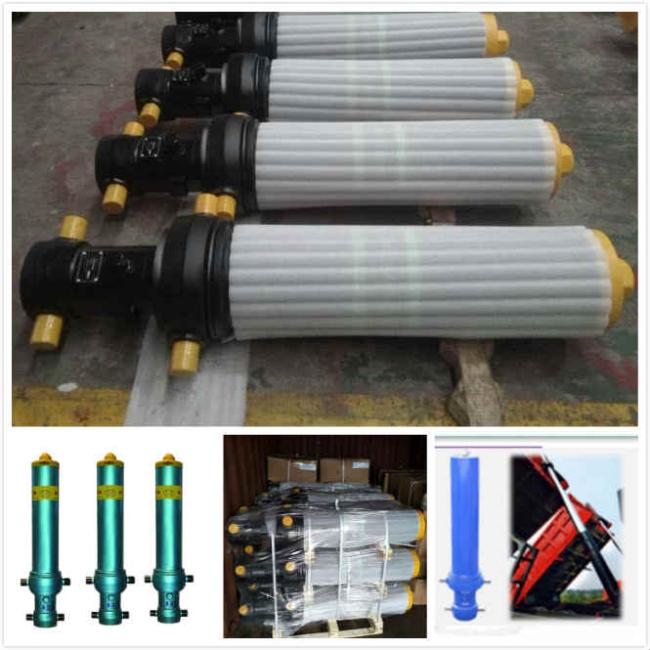

GS Telescopic Hydraulic Ram Single Acting Long Stroke for Mining Trailer
Telescopic Hydraulic Ram Single Acting Long Stroke for Mining Trailer
Application:
Can be used on construction machinery,engineering machinery,mining machinery,lock of water resource project and so on.
Features:
Good quality and low noise
The oil way design perfectly and can save the energy, avoid wast
The pump connected with the motor directly can save the space
Single-acting cylinders transfer force and motion in one direction only
Acts on the piston to push the piston rod out
When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement
Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.
| specification |
pressure (MPa) |
bore size (mm) |
mounting length (mm) |
stroke length (mm) |
push (KN) | |
| first stage | last stage | |||||
| 5TG-E180*1360 | 16 | 180 | 343 | 1360 | 410 | 210 |
| 5TG-E160*1530 | 16 | 160 | 343 | 1530 | 320 | 170 |
| 5TG-E150*3205 | 16 | 150 | 343 | 3205 | 280 | 145 |
| 5TG-E130*3460 | 16 | 130 | 343 | 3460 | 210 | 110 |
| 5TG-E130*2980 | 16 | 130 | 343 | 2980 | 210 | 110 |
| 5TG-E110*3205 | 16 | 110 | 343 | 3205 | 150 | 32 |
| piston rod |
Material |
35#, SAE1045(45#), 35CrMo, 42CrMo4, etc | ||||
| Technical Treatment | Quenched and tempered. 1.5-1mm, or 1.03mm per millimetre | |||||
| seal kits |
Hallite, NOK, SKF, Parker etc. |
|||||
|
The most common problems when selecting a hydraulic cylinder are as follows:
A. Retract dimension B. Stroke length (Inches / mm) C. Mounting types D. Port Size and Type (SAE or NPT) E. Pressure rating (PSI) F. Bore Diameter (Inches) G. Application details
|
||||||
We can OEM & ODM, If you are interested in our hydraulic RAM, please feel free to contact us.
Warranty:
We offer 12 months warranty.
From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.
After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
Product :

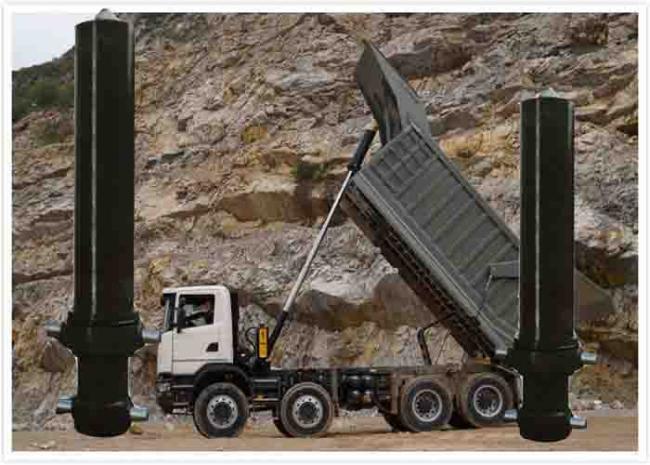

Telescopic cylinders have two or more piston rods in a coaxial arrangement to achieve greater extended length compared to the retracted length. An external force is required to return the cylinder to the retracted position. A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.
