Double Acting With Piston Agricultural Farm Hydraulic Cylinder Manufacturers



Product Range details:
Tube Seal—O-Ring with anti-exthusion backup washer
Tie Rod—High tensile steel
Piston Rod—Chrome Plated C1045 Steel
Rod Clevi—Ductile iron
End Caps—High Grade Iron/ Casting Seel
Piston—High grade ductile iron, precision machined
Piston Wear Ring—Glass filled nylon Wear Ring/ Urethane Seal
Rod Wiper—Metal encased nitrile rubber/Polyurethane Snap In
Rod Seal—Urethane/Customers Specified
Ports—Nptf for 2T, SAE ORB 3T
Paint Color--- Seni-gloss black, Grey, Red or other customized colors
Mounting Style—Pins And Clips Included/ Pin eye mounting on both ends/ Cross Tube

Product Overviews

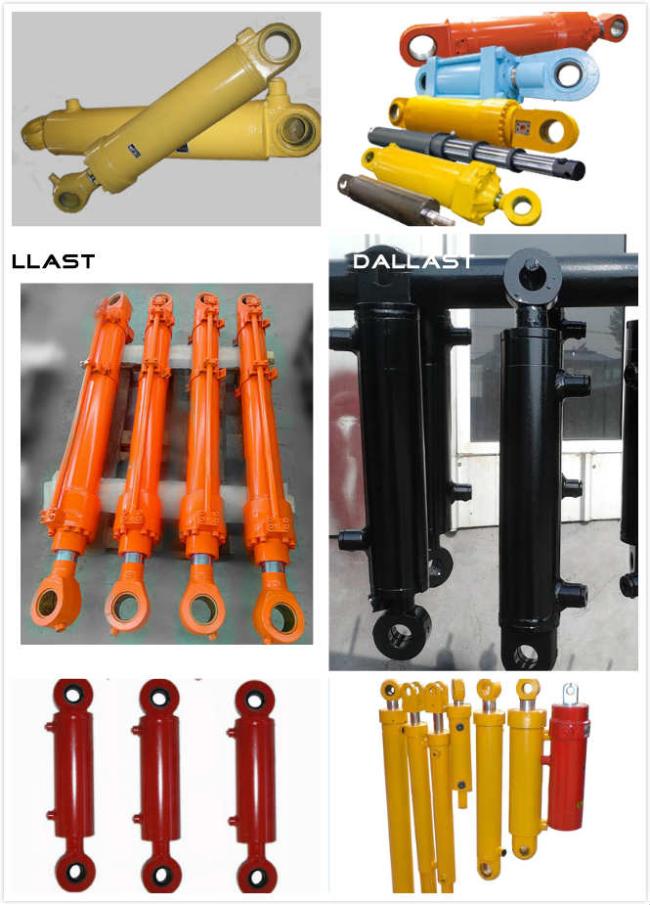

We can design and produce most kind hydraulic cylinder.Single acting,double acting hydraulic cylinder.Big size and little size hydraulic cylinder.3-6 stages Telescopic hydraulic cylinder.
(1) Construction Machinery cylinders for: loaders, excavator, forklift, bulldozer, dumper, roller, crane ,pump truck,garbage truck,garbage compactor and boat used hydraulic cylinder etc.
(2) Metallurgical Machinery cylinders for: decelerator, tile press etc.
(3) Mining Machinery cylinders for: crasher, coal cutter shield tunneling machine and dame gate etc.
(4) Agricultural & forestry machinery cylinders for: soil preparation machine, harvester, weeder etc.

Processing and inspection:
1.Cylinder Tube
According to the work pressure,work temperature,work situation and other special requirements,different cylinder tube will be choosed.
1.1 Cylinder Tube:cold drawn precision seamless steel tube,hot rolled seamless steel tube,forged tube.
1.2 Tube Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc.
1.3 Surface Roughness:R0.16-0.32μm
1.4 Inside Chromating:If necessary,inside tube will be chromated.

2.Piston Rod
2.1 Rod Material:35#,SAE1045(45#),35CrMo,42CrMo4,etc.
2.2 Technical Treatment: Quenched and tempered.1.5-1mm,or 1.03mm per millimetre.

3.Seal Kits
According to customers' requirements and work condition,we will choose suitable seal kits,including:Hallite,NOK,SKF,Parker,Merker,Trelleborg,China made,Taiwan made.We will supply you suitable seal kits to ensure hydraulic cylinders a long lifetime,easy maintenance and simple repairing.

4.Inspection and Testing
4.1 We have professional quality control department,every step from raw material to finished product is in the same factory,each procedure will be tested by professional inspector.
4.2 Before hydraulic cylinder is assemblied , every spare parts would be measured and cleaned .After hydraulic cylinder is assemblied , pressure test would be carried out one by one.We ensure the testing pressure is 30%-50% higher than rated pressure in almost one hour's test.Each hydraulic cylinder must be tested without any leakage.
