2 Way Telescopic Hydraulic Lift Cylinder for Agricultural Farm Dump Truck
Double Acting Telescopic Lifting Tipper Dump Trailer Hydraulic Cylinder
Bore size: from 40mm to 800mm,
Stroke length: to 12000mm or longer
| Application | Dump truck, Tipper, Dump Trailer |
| Material of cylinder tube | Alloy steel,Carbon steel,27SiMn |
| Seal | Hallite,SKF,NOK,Guarnitec,Parker |
| Working pressure | 16MP, 18MP or 22MP for your selection |
| Stroke | 630mm, 735mmm,750mm,900mm or per your requirements |
| Color | Red black blue gray,or according to customer's requirements |
| Mounting type | Earring-trunnion, double trunnion, double earring,or per customer's request |
| Package | Shrink film, wooden pallet and carton |
| Delivery time | 20-30 days after payment receiving |
Q1. What are your cylinder advantages?
A: 1. Rod are chrome plated.
2. Tubes are quenched and tempered.
3. Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.
4. Good quality yet lower price.
Q2: Are you a manufacture or a trade company?
A: Manufacture, we are the leader manufacturer of hydraulic industry in China with experience and technology accumulation. With strong technical team we could solve any annoyance of you.
Q3: Do you have quality control system?
A: Yes, The quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.
Q4: Do your products come with a warranty?
A: Yes, we have 12 months warranty.
Q5: What about the quality feedback of your products?
A: We have never received even once quality complaint for many years of international business.
How do we ensure product quality?
piston rod:
1: hard chrome plating
2: thickness of 0.03-0.05mm;
3: in-house salt spray test
cylinder tube:
1: standard material-#45, SAE1045, CK45
2. surface roughness: Ra0.4-0.08micron
Seals:NOK, Hallite, Parker etc.
Welding:mannual & machine welding

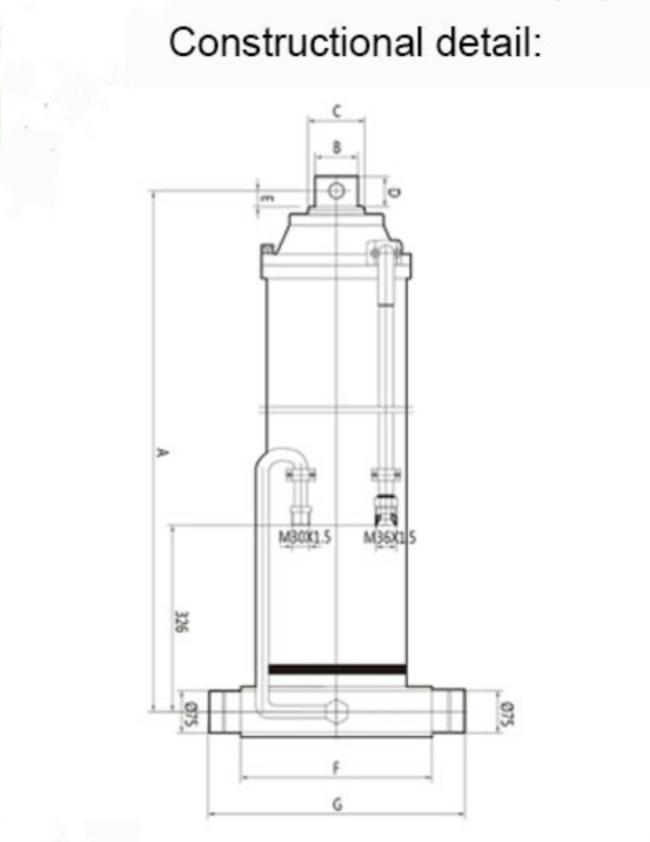

General model as below:
| Type | Strock (mm) | SizeA (mm) | SizeB (mm) | SizeC (mm) | SizeD (mm) | SizeE (mm) | SizeF (mm) | SizeG (mm) | Theoretical pull |
| HG-F220*900RZ | 900 | 1217 | 75 | 100 | 53 | 28 | 365 | 485 | 76.026 |
| HG-F220*750RZ | 750 | 1075 | 70 | 100 | 45 | 25 | 300 | 450 | 62.831 |
| HG-F220*750RZ | 750 | 1075 | 60 | 50 | 45 | 25 | 335 | 450 | 40.715 |
| HG-F220*735RZ | 735 | 1075 | 70 | 50 | 45 | 25 | 335 | 450 | 40.715 |
| HG-F220*630RZ | 630 | 965 | 60 | 70 | 45 | 25 | 335 | 450 | 32.170 |
