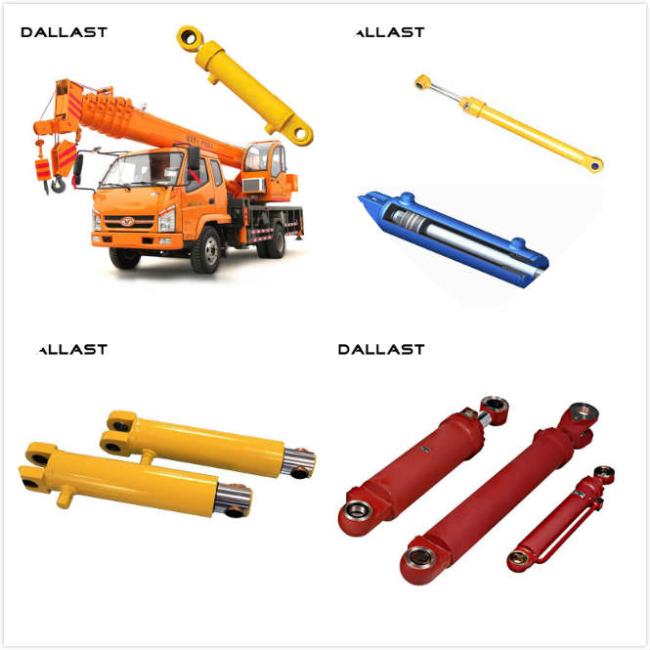

6 Inch Double Acting Hoist Piston Type Hydraulic Lift Cylinder

As a big hydraulics supplier in china, we can provide you with hydraulic cylinder for various construction machine or vehicles purpose, as well as for other industry need hydraulic power. We can also make it according to drawings from customer to meet different demand. The advanced machine such as 10m cnc boring machine, horizonal and vertical long distance honing machine, machining center as well as the test station can assure the reliability of cylinder. It suitable for excavator, loader, forklift, mining machinery, power steeing for marine and agricultural machinery purpose etc.

1. Big lifting force: Adopt high strength imported materials, work under pressure up to 22 M pa, the unit weight of the lifting force is 10% ~ 20% higher than the similar products.

2. Higher efficiency: Smaller cylinder diameter makes the smaller working volume, the speed of oil cylinder lifting and falling are more fast and more efficiency, running more can bringmore benefits.

3. Stronger weather resistance: The application new materials and special structures can adapt to differe nt environment from cold to hot and can round-clock operation.

4. Better performance: Imported high quality materials and spare parts make outstanding products performance. Precision of the system structure design, lean manufacturing and long service life can bring a lot of benefits to customers.

Hydraulic cylinders get their power from pressurized hydraulic fluid, which is typically oil. The hydraulic cylinder consists of a cylinder barrel, in which a piston connected to a piston rod moves back and forth. The barrel is closed on each end by the cylinder bottom (also called the cap end) and by the cylinder head where the piston rod comes out of the cylinder. The piston has sliding rings and seals. The piston divides the inside of the cylinder in two chambers, the bottom chamber (cap end) and the piston rod side chamber (rod end) . The hydraulic pressure acts on the piston to do linear work and motion.

Flanges, trunnions, and/or clevises are mounted to the cylinder body. The piston rod also has mounting attachments to connect the cylinder to the object or machine component that it is pushing.
