T / F Type Hydraulic Lift Cylinder Kubota Hollow Dump Truck Piston Rod

Kubota Hollow Dump Truck T / F Type Hydraulic Lift Cylinder Piston Rod

About Us
We produce hydraulic cylinder over 10 years. Now having all kinds of advanced equipment’s more than 200 sets, such as: Hole grinding machine made in American, full-function CNC machine, computer checking platform and so on.
Double-acting hydraulic cylinder is our superstar production, it is recognized around the world for its good performance.

Hydraulic Cylinder

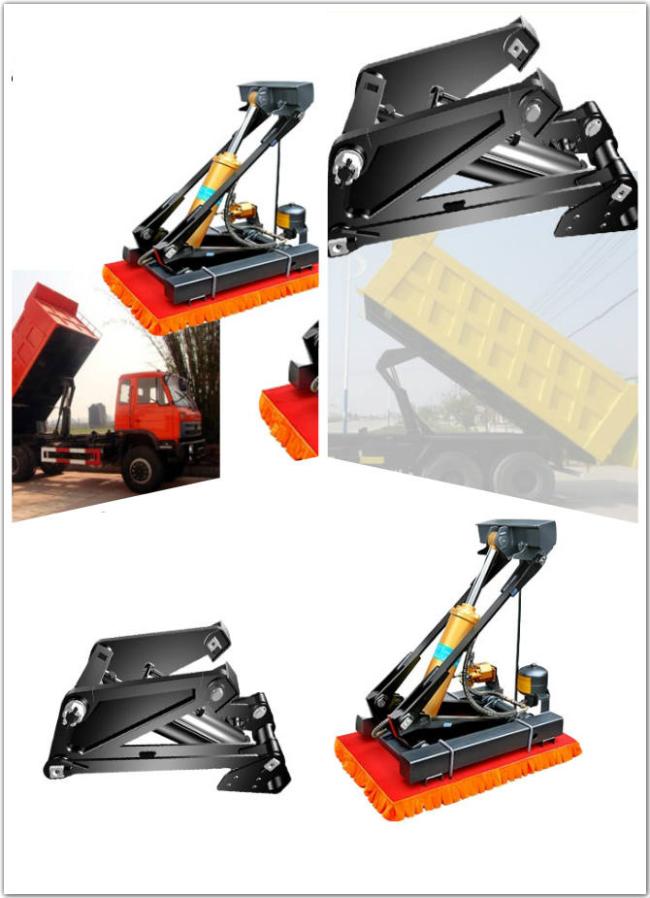

T/F type

Characteristics:

• The carrying shaft and cylinder bottom are welded into one piece and the oil inlet is arranged at the middle of the carrying shaft.
• With the built-in limit valve ,when the compartment is lifted to the maximum angle ,the oil in the hydraulic cylinder lower chamber will pass this valve and flow back to the tank to stop lifting.
• The hydraulic cylinder bottom is provided with cushioning device ,which will generate the throttling action immediately before the compartment is lowered to the end to slow down the compartment lowering and reduce the impact to the sub-frame.

Application scope:
• T type lifting mechanism cylinders are suitable for the tippers with the compartment length within 4200-6300mm ,carrying capacity within 25-45t and lifting angle within 46-56°.
• F type lifting mechanism cylinders are suitable for the tippers with the compartment length within 4800-5600mm, carrying capacity within 25-45t and lifting angle within 47-54°.

Advantage of our production
1. Use a new rolling technology to ensure the precision of cylinder inside hole is very high

2. The thickness of cylinder up to 16mm, it can meet the strength requirement when the truck is overloaded

3. The diameter of piston rod reaches 90mm, it will not be bending under normal use

4. Use 3 seal-rings to seal piston rod, it can life-long use

As a big hydraulics supplier in china, we can provide you with hydraulic cylinder for various construction machine or vehicles purpose, as well as for other industry need hydraulic power. We can also make it according to drawings from customer to meet different demand. The advanced machine such as 10m conk boring machine, horizonal and vertical long-distance honing machine, machining center as well as the test station can assure the reliability of cylinder. It suitable for excavator, loader, forklift, mining machinery, power steering for marine and agricultural machinery purpose etc.

Hydraulic Cylinder:

we can make various types of cylinders, according to customer's samples and drawings.

Material of hydraulic cylinder:

Piston rod: chrome or nickel plated, ground polished piston rod.

Tube: high tensile cold drawn tube, precision honed for extended seal life.

Guarantee of the hydraulic cylinder:

we offer 12 months guarantee on the product quality, and offer spare parts free of charge.
