Standard Hydraulic Lift Cylinder Chrome 13-90 tons for Truck Lifting

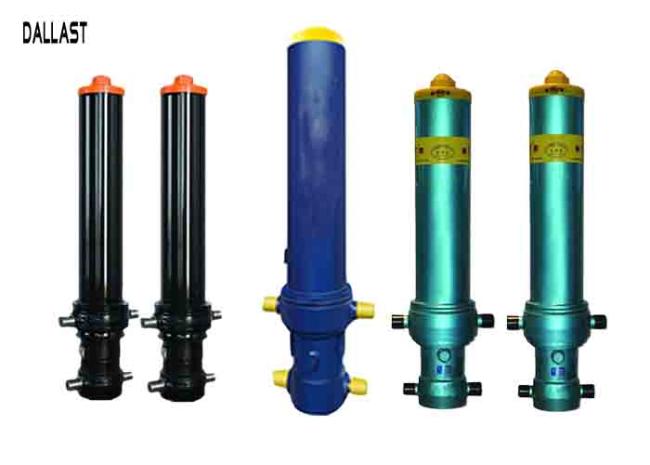

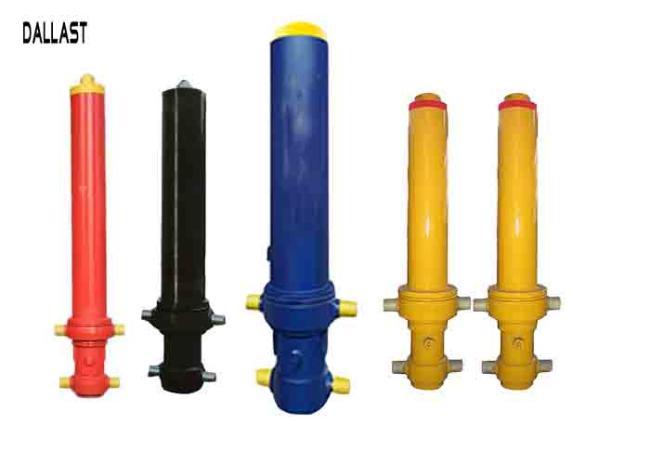

Standard Hydraulic Lift Cylinder Multi Stage Single Acting Chrome for Truck Lifting
Advantdges:
Higher efficiency; Stronger weather resistance; Better performance.
Choice of Mounting Styles; Cross Tube or Trunnion; Hard Chrome Plated Stages; Big lifting force.
The number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement. The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections.

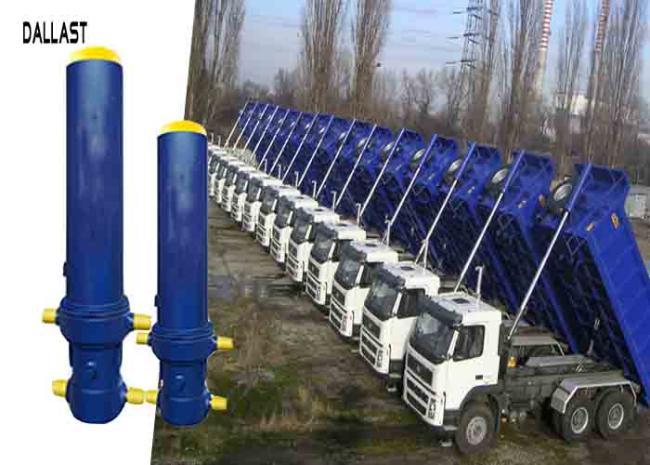

Application: Can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder. In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.
Warranty: We offer 12 months warranty
Features:
pressure ranges: could be customized
Piston Ø: customized
Piston rod Ø: customized
Max. stroke speed: according to the product types
We use hard chromed rods (other options are available)
|
Adopting latest technological development, we have been supplying a wide range of Hydraulic Cylinder for Trolley Tipper and dump trailer.
|
|||||
| standard product type | stage |
pressure (Bar) |
stroke (mm) |
close length (mm) |
mounting distance (mm) |
| 3TG-E180*4210ZZ | 3 | 160 | 4210 | 425 | 343 |
| 4TG-E160*4130ZZ | 4 | 160 | 4130 | 430 | 343 |
| 4TG-E160*5150ZZ | 4 | 160 | 5150 | 430 | 343 |
| 4TG-E180*4000ZZ | 4 | 160 | 4000 | 425 | 343 |
| 4TG-E180*5390ZZ | 4 | 160 | 5390 | 425 | 343 |
| 3TG-E180*3850ZZ | 3 | 160 | 3850 | 425 | 343 |
| 4TG-E180*5390ZZ | 4 | 160 | 5390 | 325 | 343 |
| 5TG-E191*9530ZZ | 5 | 191 | 9530 | 274 | 343 |
| 5TG-E214*7610ZZ | 5 | 214 | 7610 | 274 | 343 |
| 5TG-E214*9030ZZ | 5 | 214 | 9030 | 274 | 343 |
We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the
drawings and tell us the details.
Material:
Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.
The most common problems when selecting a hydraulic cylinder are as follows:
A. Retract dimension
B. Stroke length
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating
F. Bore Diameter
G. Application details
