Single Acting Dump Truck Telescoping Sleeve Chrome Hydraulic Lift Cylinder

Single acting hydraulic cylinder
Single acting cylinders are the perfect choice for applications where gravity, weight or some other assist force is available to move the cylinder in one direction. Hydraulic pressure actuates the rod in one direction: extend or retract
• Push action cylinders
• Pull action cylinders
• Rapid traverse cylinders
• Telescopic cylinders


This type of hydraulic cylinder is used in front-installed lifting frame on tipping vehicle. Installing distance is small, so it is convenient to install and avoid the intervene during the lifting period. It has deflating kit, and can remove the system air conveniently to make sure of normal working of hydraulic system. Sealed system, made by imported technology, is of property good, and low friction, so the life is long.

We can design and produce most kind hydraulic cylinder. Single acting, double acting hydraulic cylinder. Big size and little size hydraulic cylinder.3-6 stages Telescopic hydraulic cylinder.

(1) Construction Machinery cylinders for: loaders, excavator, forklift, bulldozer, dumper, roller, crane, pump truck, garbage truck, garbage compactor and boat used hydraulic cylinder etc.

(2) Metallurgical Machinery cylinders for: decelerator, tile press etc.

(3) Mining Machinery cylinders for: crasher, coal cutter shield tunneling machine and dame gate etc.

(4) Agricultural & forestry machinery cylinders for: soil preparation machine, harvester, weeded etc.

Advantage
1. Max diameter: 1200mm
2. Parker or Merkel Seal
3. Long service life and easy repair
4. Good sealed performance

Main characteristics
1. Piston rod and cylinder body choose steel forgings
2. Piston rod chromatin after heat treatment.
3. Choose Parker or Merkel seal ring
4. Hight temperature resistant and high pressure resistant according to the customers' requirements
5. Max pressure: 40 Mpa
6. Max temperature: 200 degrees.

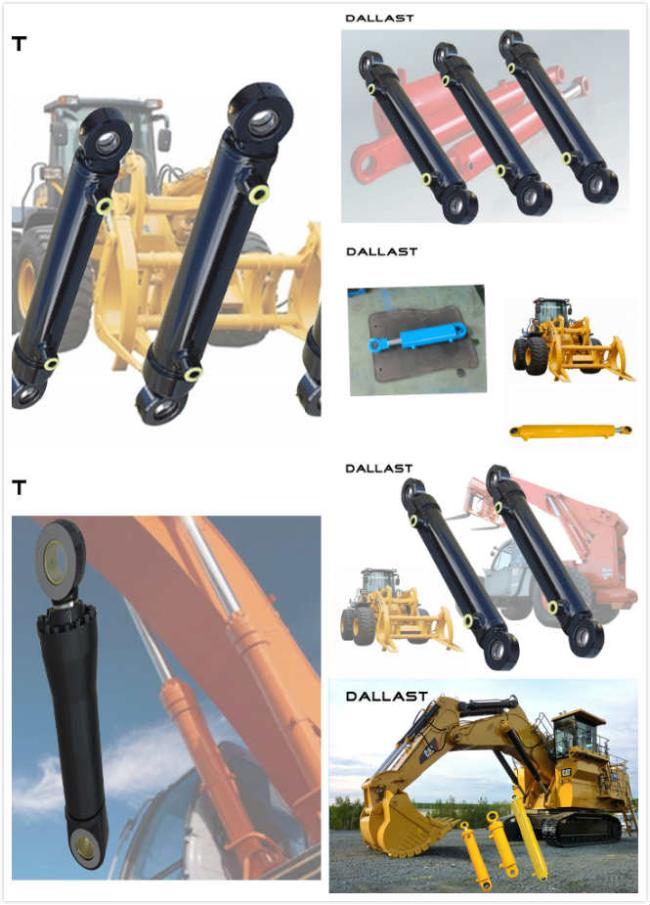

Our companies can customize the design, the production of all types of excavator’s hydraulic cylinder. We have sets of advanced cylinder production equipment. The cylinder liners are made of cold drawn seamless steel tubes with strong honing technique. The cylinder length can reach up to 7m with diameters from φ40 to φ500. The piston rods are made of chrome steel with special heat treatment. The diiron sing technique is applied to the surface, with makes it high in smooth finish with tough inside and hard outside. The piston rod’s diameters are from φ5 to φ180, equipped with high quality seals. The quality of our cylinders is guaranteed by the test of high-pressure test bed. We can serve you with our quality products, reasonable price, and timely delivery.
