Double Acting Dump Trailer Hydraulic Cylinder Telescoping One Stage Sleeve for Dump Trailer
Hydraulic Double Acting Telescoping One Stage Sleeve Cylinder for Dump Trailer
Features:
Higher efficiency; Stronger weather resistance; Better performance.
Choice of Mounting Styles; Cross Tube or Trunnion; Hard Chrome Plated Stages; Big lifting force.
Our warranty of trailer cylinder is one year.
Application: dump truck
Designed For: double-acting
Max inner tube diameter: 170mm,180mm,195mm,200mm,210mm,etc.
Mounting distance: 325mm/345mm/425mm
Working Pressure: 16Mpa
Stroke: 750mm~7200mm
Tipping Weight: 35~68Ton
Seal Type: Parker, NOK, or as customer's requirement
Piston Rod: Chrome or nickel plated, ground & polished piston rod
Tube: High tensile cold drawn tube, precision honed for extended seal life
|
It is double acting piston type hydraulic cylinder.
Fitted together with hoist mechanism.

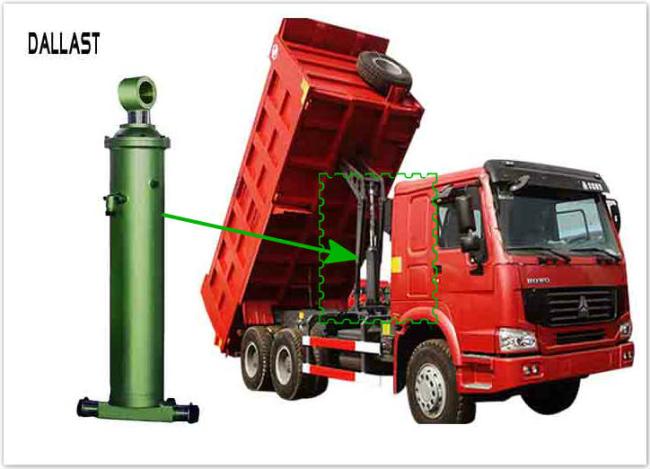

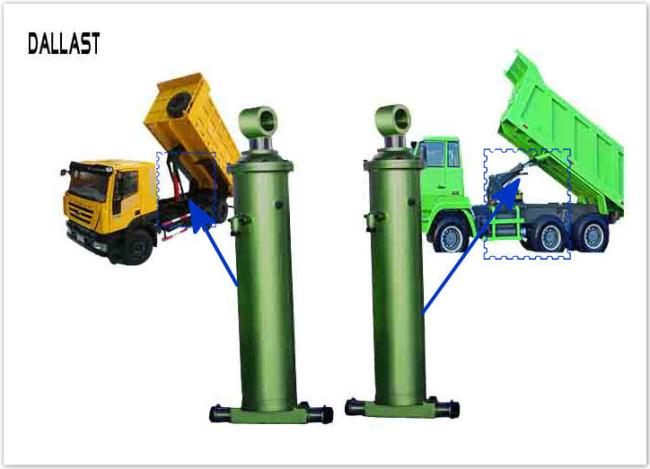

It is installed under truck body.
|
|||||
| Models | Length | Width(mm) |
Height (mm) |
Min closed length (mm) |
Weight (kg) |
| KRM-92 dump hoist | 1120 | 528 | 350 | 749 | 122 |
| KRM-143 dump hoist | 1193 | 410 | 341 | 794 | 179 |
| KRM-160S dump hoist | 1434 | 500 | 60 | 992 | 252 |
| KRM-160C dump hoist | 1722 | 525 | 430 | 1152 | 298 |
| KRM-183 dump hoist | 1740 | 592 | 541 | 1175 | 464 |
| KRM-200A dump hoist | 1843 | 606 | 470 | 1232 | 504 |
| KRM-201 dump hoist | 1886 | 590 | 476 | 1275 | 515 |
| KRM-220 42’’ dump hoist | 1870 | 620 | 500 | 1226 | 518 |
The most common problems when selecting a hydraulic cylinder are as follows:
A. Retract dimension (Center of pin to center of pin)
B. Stroke length (Inches)
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating (PSI)
F. Bore Diameter (Inches)
G. Application details
Delivery:
With a professional and experienced sales and production team,we provide a high level of communication and transparency to ensure timely delivery and customer satisfaction.
About technology:
hydraulic cylinder produce line, 700 sets manufacturing equipment, such as cold drawing production line , heat treatment production line, surface treatment production line, testing equipment, various digital-control machining equipment,gantry style linear electroplating production line, hydraulic cylinder quality guarantee system.
We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the
drawings and tell us the details.
