Agricultural Dump Truck Hydraulic Cylinder Plunger Long Stroke 16-32 Mpa Working Pressure
Single Acting Plunger Long Stroke Agricultural Dump Trailer Hydraulic Rams
Key Specifications/Special Features:
Hydraulic tilting cylinder:
As manufacturer of hydraulic cylinders in China, we own the best technology and apply for 13 national patent about telescopic hydraulic cylinders so our cylinders own a high reputation in international market, our repair rate is less than 1% every year
We produce it according to ISO 9001:2000
We can produce standard telescopic hydraulic cylinders and nonstandard telescopic hydraulic cylinders for our customers.
Cylinder details:
1. Mounting type: turning, flange, earring, according to your demand
2. Seal: use parker, NOK and other famous seal parts to ensure the quality
3. Piston rod: 20#, 45# steel with high frequency quenching
4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder
5. Size:
Bore: 20-500mm (7/8-20"), stroke can reach to 11000mm
6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval
Parameter:
|
Hydrailic Cylinder Data: A.Bore diameter B.Rod diameter C.Stroke length D.Mounting type E.Mounting size F.Paint color requirement. |
Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirements. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirements. | |||||
|
Single Acting Welded Plunger Long Stroke Dump Trailer Hydraulic Cylinder
|
||||||
| Model | Extended Stages |
Working Pressure | Max. stage | Max. stroke | Lifting Capacity |
Suitable Length of Truck Body |
| (MPa) | Diameter(mm) | (mm) | (ton) | (m) | ||
| 129-3E-3880 | 3 | 16-19 | 129 | 3880 | 20-35 | 5.2 |
| 149-3E-3880 | 3 | 16-19 | 149 | 3880 | 25-45 | 5.2 |
| 149-3E-4280 | 3 | 16-19 | 149 | 4280 | 25-45 | 5.6 |
| 149-4E-3880 | 4 | 16-19 | 149 | 3880 | 25-40 | 5.2 |
| 149-4E-4280 | 4 | 16-19 | 149 | 4280 | 25-40 | 5.6 |
| 169-4E-4280 | 4 | 16-19 | 169 | 4280 | 30-50 | 5.2-5.6 |
| 169-4E-4640 | 4 | 16-19 | 169 | 4640 | 32-55 | 5.6-6.1 |
| 169-4E-5000 | 4 | 16-19 | 169 | 5000 | 32-60 | 6.2-6.8 |
| 169-4E-5180 | 4 | 16-19 | 169 | 5180 | 32-60 | 6.2-6.9 |
| 169-4E-5390 | 4 | 16-19 | 169 | 5390 | 32-60 | 6.2-6.9 |
| 185-4E-4640 | 4 | 16-19 | 185 | 4640 | 30-45 | 5.6-6.1 |
| 185-4E-5000 | 4 | 16-19 | 185 | 5000 | 32-50 | 6.2-6.5 |
| 185-4E-5390 | 4 | 16-19 | 185 | 5390 | 40-60 | 6.2-6.8 |
| 185-4E-5460 | 4 | 16-19 | 185 | 5460 | 40-65 | 6.5-7.3 |
| 191-5E-5780 | 5 | 16-19 | 191 | 5780 | 40-70 | 6.9-7.7 |
| 191-5E-6200 | 5 | 16-19 | 191 | 6200 | 45-80 | 7.3-8.2 |
| 191-5E-7130 | 5 | 16-19 | 191 | 7130 | 50-85 | 7.8-8.5 |
| 191-5E-9030 | 5 | 16-19 | 191 | 9030 | 55-90 | 10.0-11.0 |
FAQ:
| Questions: | Answers: |
| Q1: Are you a manufacturer or a trader? | We are manufacturer ,our own factory is located in Liaoning province, China. |
| Q2: How do you protect customer's right? | DALLAST's work habit is to sign confidential agreement with own/outside factories all the time before start any project. |
| Q3: How long shall we get the quotation? | Processing time for Enquiries :1-3 days. |
|
Q4: How long have you been in Hydraulic Cylinder industry? |
Our factory is built in year 2002 . |
| Q5: How about the warranty and after-sale service? |
One year warranty, and we can offer you long-distance after-sale service 7*24h |

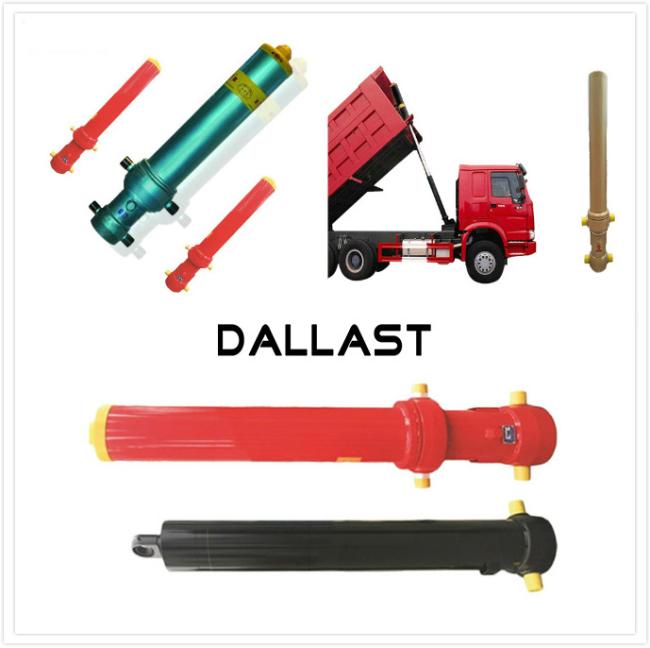

Product Show:
