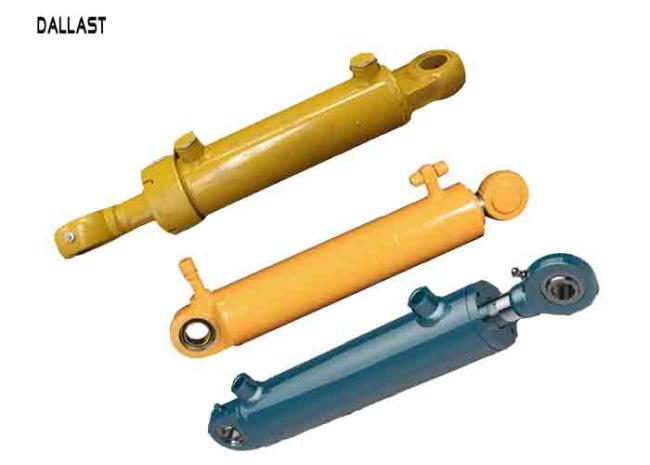

Custom Double Acting Hydraulic Ram Piston Dual Action Two Port Chrome Steel Rod Stroke 500 - 1200 mm
Custom Hydraulic Ram Piston Dual Action Two Port Chrome Steel Rod Stroke 500-1200 mm
Introduction:

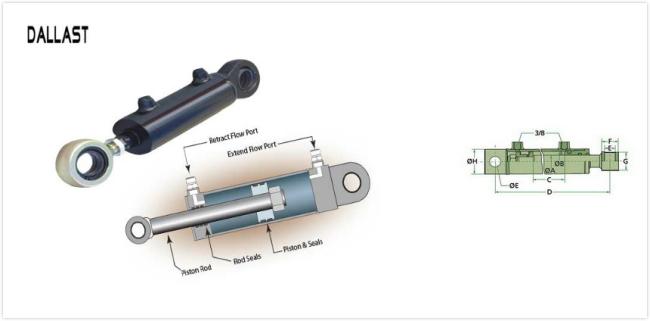

A double action hydraulic cylinder can move along the horizontal (x-axis) plane, the vertical (y-axis) plane or along any other plane of motion.
a. Application: The application new materials and special structures can adapt to different environment from cold to hot and can round-clock operation.
b. Rigid welded construction, high tensile welded steel end mounts, threaded gland and quality seals allow industrial cylinders to work in harsh conditions.
c. Mounting way: Front and end of earring; Head fixed with flange; End fixed with flange; Vertical to axis foot type; Middle fixed with pendulum shift; End with single earring and any design of cylinder is according to your demand.
d. Warranty: We offer 12 months warranty.
e. Port: Alternative ports & port positions available.
| Mounting position | Optional |
| Bore size |
Several bore sizes and in varying strokes; Many of these sizes are available |
| Stroke | depend on the application |
| Operating pressures |
Nominal pressure:25 MPa (250 bar 3625 psi)
Static test pressure: 37 MPa (370 bar 5440 psi) Cylinders are designed for normal or high pressure |
| Operating temperature | -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen. |
| Hydraulic fluid | Custom |
| Rod diameter | Larger diameters vary between 50,000 and 75,000 PSI minimum yield material |
| Rod material | All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. |
| Seal |
Parker/Nok/Hallite etc. |
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
rom custom hydraulic cylinders to project-based designs, or an OEM specific application, we can provide the solution that will best suit your project requirements. Tips: Please provide photo or technical diagrams of hydraulic cylinder.
Why choose us:
We can work with you to develop competitive pricing structures and highly responsive manufacturing lead-times to ensure your job is completed on-time and on-budget.
With a professional and experienced sales and production team,we provide a high level of communication and transparency to ensure timely delivery and customer satisfaction.
Aerial working platform becomes more and more popular because it brings enormous convenience to municipal,fire working,industrial,agriculture and household use.
Tips:
We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:
